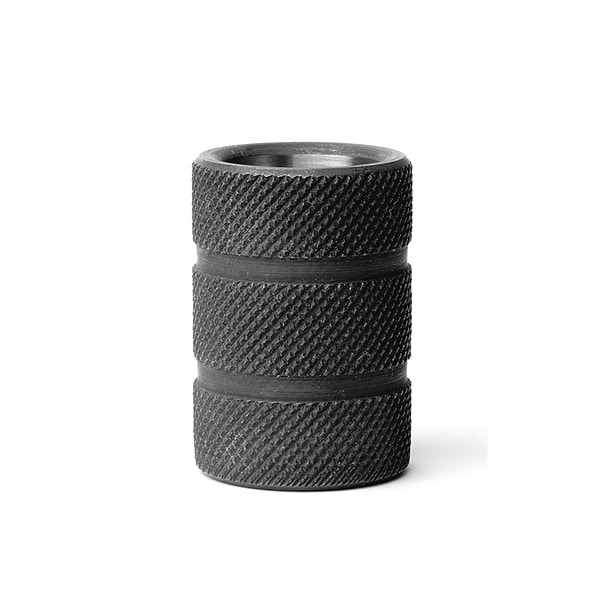

Diamond Groove Drill Bushing (DG), Metric
| Inside Dia. Tolerance | +0.0001 in /+0.0004 in |
|---|---|
| Drill Size | 3.00 mm |
| Item | Diamond Groove Drill Bushing (DG) |
| Inside Dia. | 3.00 mm |
| Bushing Code | DG |
| Material - Machining | High Speed Steel |
| Bushing Head Type | Headless |
| Rockwell Hardness | RC 60-65 |
| Outside Dia. Tolerance | +0.0250 in /+0.0100 in |
| Drill Bushing Wall Type | Standard Wall |
| Overall Length | 1/2 in |
| Head Type | No |
| Measurement System | Metric |
| Heat Treatment | Through Hardened |
| Decimal Equivalent | 0.1181 |
| Outside Dia. | 1/4 in |
| Size - Decimal | 3 mm to 0.1181 |
| Package Quantity | 1 |
