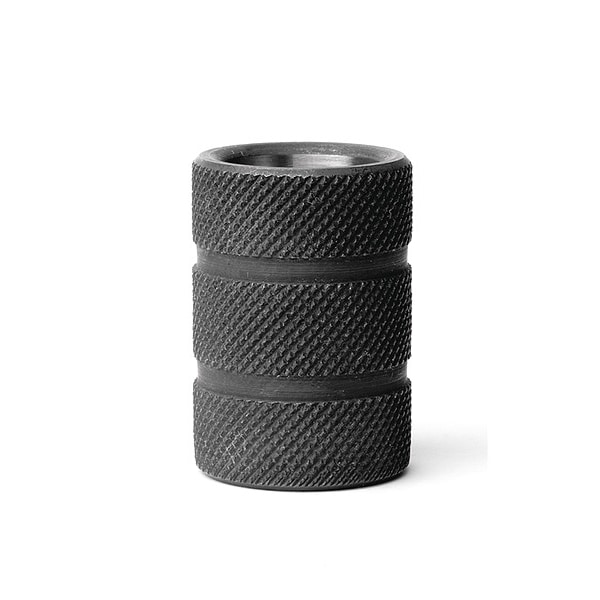

Diamond Groove Drill Bushing (DGM)
| Size - Decimal | 6.35 mm to 0.25 |
|---|---|
| Inside Dia. | 6.35 mm |
| Rockwell Hardness | RC 60-65 |
| Overall Length | 10 mm |
| Bushing Head Type | Headless |
| Drill Bushing Wall Type | Standard Wall |
| Outside Dia. Tolerance | +0.6500 in /+0.2500 in |
| Measurement System | Metric |
| Decimal Equivalent | 0.25 |
| Item | Diamond Groove Drill Bushing (DGM) |
| Bushing Code | DGM |
| Inside Dia. Tolerance | +0.0001 in /+0.0005 in |
| Outside Dia. | 12 mm |
| Material - Machining | High Speed Steel |
| Heat Treatment | Through Hardened |
| Drill Size | 6.35 mm |
| Head Type | No |
| Package Quantity | 1 |
