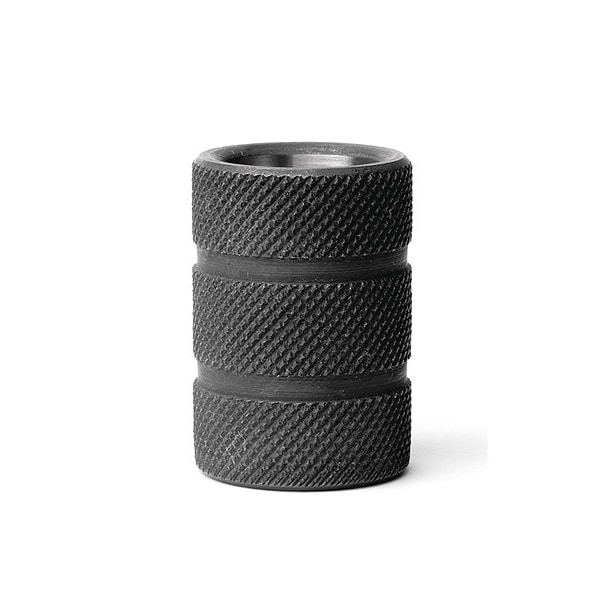

Diamond Groove Drill Bushing (DGM)
| Measurement System | Metric |
|---|---|
| Size - Decimal | 15 mm to 0.59 |
| Outside Dia. Tolerance | +0.9000 in /+0.2500 in |
| Decimal Equivalent | 0.59 |
| Head Type | No |
| Bushing Code | DGM |
| Heat Treatment | Through Hardened |
| Outside Dia. | 26 mm |
| Drill Size | 15.00 mm |
| Drill Bushing Wall Type | Standard Wall |
| Bushing Head Type | Headless |
| Material - Machining | High Speed Steel |
| Overall Length | 16 mm |
| Inside Dia. Tolerance | +0.0001 in /+0.0005 in |
| Rockwell Hardness | RC 60-65 |
| Item | Diamond Groove Drill Bushing (DGM) |
| Inside Dia. | 15.00 mm |
| Package Quantity | 1 |
