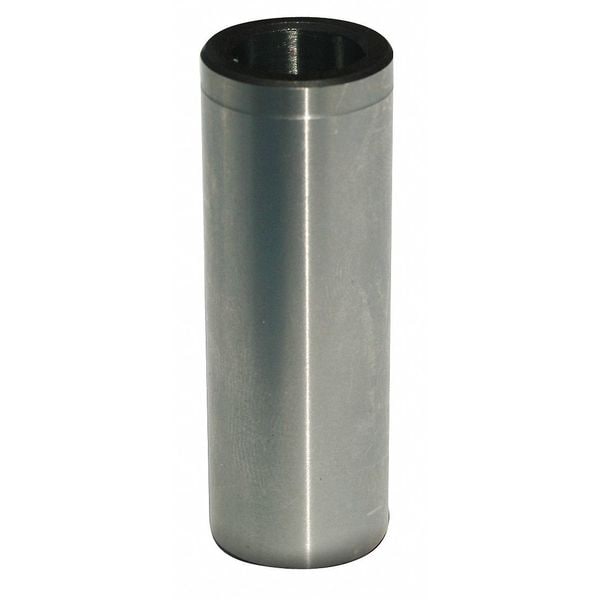

Drill Bushing, 3/8inL, 5/8in Out Dia.
| Material | 52100 Thru Hardened |
|---|---|
| Finish | High Speed Steel |
| Head Material | High Speed Steel |
| Rockwell Hardness | RC 62-64 |
| Material - Machining | High Speed Steel |
| Inside Dia. | 3/8 in |
| Heat Treatment | Through Hardened |
| Hardness | Rc 62-64 |
| Bushing Head Type | Headless |
| Bushing Type | Headless Press Fit |
| Item | Press-Fit Drill Bushings (P) |
| Concentricity Tolerance | .0005" T.I.R. max |
| Overall Length | 3/8 in |
| Inside Dia. Tolerance | +0.0001 in /+0.0005 in |
| Drill Bushing Wall Type | Standard Wall |
| Drill Size | 3/8 in |
| Outside Dia. | 5/8 in |
| Measurement System | Fractional Inch |
| Head Type | No |
| Decimal Equivalent | 0.375 |
| Bushing Code | P |
| Size - Decimal | 3/8 in to 0.375 |
| Package Quantity | 1 |
