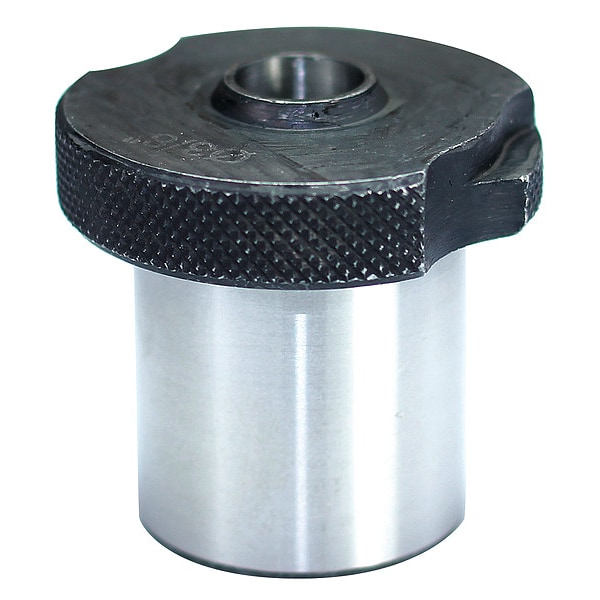

Gun Drill Bushing (DGE), Standard Wall, Drill Size: #25
| Size - Decimal | #25 - 0.1495 |
|---|---|
| Bushing Head Type | Headed |
| Head Dia. | 1-27/64 in |
| Overall Length | 1 in |
| Head Height | 7/16 in |
| Item | Gun Drill Bushing (DGE) |
| Decimal Equivalent | 0.1495 |
| Outside Dia. | 1 in |
| Measurement System | Wire |
| Drill Bushing Wall Type | Standard Wall |
| Heat Treatment | Through Hardened |
| Head Material | High Speed Steel |
| Drill Size | #25 |
| Rockwell Hardness | RC 62-65 |
| Inside Dia. Tolerance | 0.0000 in /+0.0002 in |
| Head Type | Yes |
| Material - Machining | High Speed Steel |
| Inside Dia. | #25 |
| Bushing Code | GDE |
| Outside Dia. Tolerance | +0.0000 in /-0.0002 in |
| Package Quantity | 1 |
