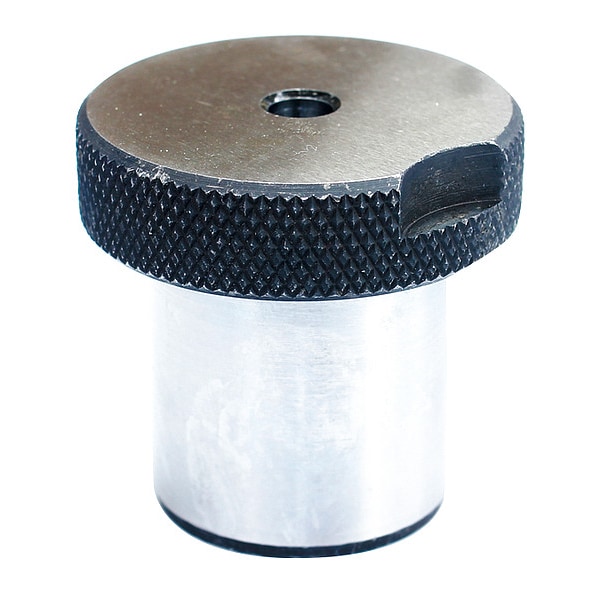

Gun Drill Liner (GDL), 51/64" dia. Inside
| Head Material | High Speed Steel |
|---|---|
| Head Dia. | 1-51/64 in |
| Heat Treatment | Through Hardened |
| Inside Dia. | 51/64 in |
| Inside Dia. Tolerance | +0.0002 in /-0.0000 in |
| Outside Dia. Tolerance | +0.0000 in /-0.0002 in |
| Item | Gun Drill Liner (GDL) |
| Drill Bushing Wall Type | Standard Wall |
| Bushing Code | GDL |
| Overall Length | 1-3/8 in |
| Drill Size | 51/64 in |
| Bushing Head Type | Headed |
| Head Height | 3/8 in |
| Material - Machining | High Speed Steel |
| Outside Dia. | 1-3/8 in |
| Rockwell Hardness | RC 62-65 |
| Head Type | Yes |
| Size - Decimal | 51/64 in to 0.7969 |
| Decimal Equivalent | 0.7969 |
| Measurement System | Fractional Inch |
| Package Quantity | 1 |
