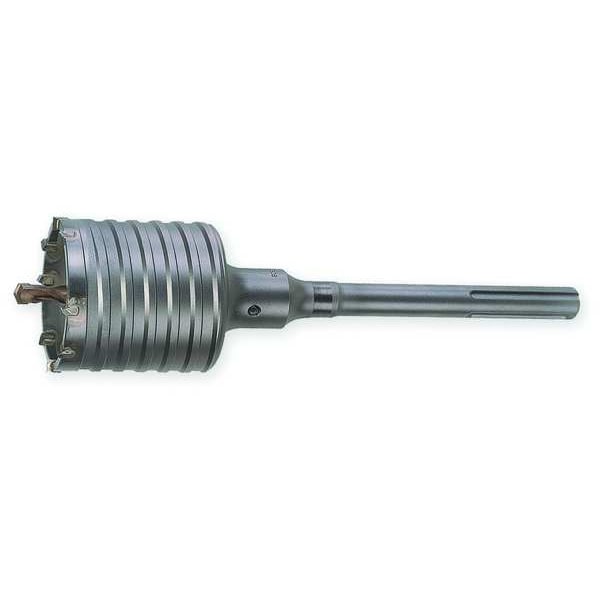

SDS Max (R) Core Bit W/Shank, 1 3/4 In, 22 L
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Item | Core Center Bit |
| Core Bit Cutter Material | Carbide |
| Bit Dia. | 1-3/4 in |
| Drilling Depth | 17 in |
| Overall Length | 22 in |
| Drilling Length (In.) | 17 |
| Wet or Dry Application | Dry |
| Shank Shape | SDS Max |
| Application | Concrete Drilling |
| For Use With | SDS Max Rotary Hammer Drills |
| Size (In.) | 1-3/4 |
| Shank Type - Machining | SDS Max |
| Shank Included | No |
| Centering Bit Included | Yes |
| Maximum Drilling Depth | 17 in |
| Decimal Equivalent | 1.75 |
| Includes | Centering Pin, Guide Plate |
| Connection Type | Permanent |
| Centering Bit Required | No |
| Shank Diameter | 45/64 in |
| Measurement System | Fractional Inch |
| Core Body Length | 2-5/8 in |
| Core Diameter | 1-3/4 in |
| Cutting Tip Form | Toothed Style |
| For Tool Type | Rotary Drills |
| Primary Material Application | Concrete |
| Package Quantity | 1 |
