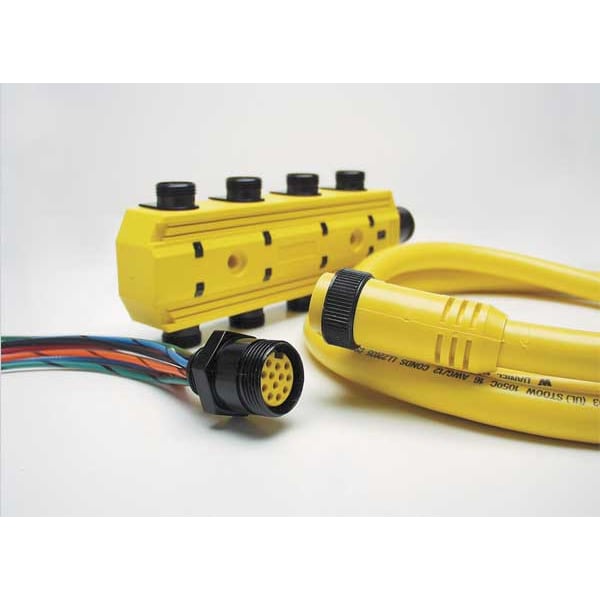

Cable de conexión, 12 pines, receptáculo, hembra
| Item | Cordset |
|---|---|
| Cable Length | 1 ft |
| Jacket Color | Yellow |
| End 1 Number of Pins | 12 |
| Max. Voltage | 600VAC/VDC |
| End 1 Thread | 1 1/8"-16 |
| Wire Size | 16 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | 1 1/8 in |
| End 2 Connection Type | Bare Wire |
| Temp. Range | -13 to 194 deg F |
| IP Rating | IP67, IP68 |
| NEMA Rating | 6P |
| Standards | CSA Certified, UL Listed |
| Features | Patented Quad Beam Contact Provides High Reliability and Low Resistance; Flexible |
| Number of Conductors | 9 |
| End 1 Keyway | Single |
| Max. Amps | 5 |
| Jacket Material | PVC |
| End 1 Gender and Plug End | Female Receptacle |
| Keyway | Single |
| Color | Orange, Blue, White-Black Trace, Red-Black Trace, Green-Black Trace, Orange-Black Trace, Blue-Black Trace, Black-White Trace, Green-Gnd, Red, White, Black |
| End 1 Number of Keyways | 1 |
| Cordset Type | Single-Ended |
| Cable Jacket Material | PVC |
| End 1 Mounting Orientation | Straight |
| Number of Wires | 12 |
| Minimum Operating Temperature | -4 deg F |
| End 1 Gender | Female |
| Maximum Operating Temperature | 221 deg F |
| Cable Jacket Color | Yellow |
| Type | Female, Mini Receptacle |
| End 2 Gender | Not Applicable |
| Connector Mating Size | 1-1/8 -16 UN-2A |
| Application/Rating - NEMA | NEMA 6P |
| Orientation | Straight |
| Coupling Type | External Thread |
| Gender | Female |
| CSA | LR6837 |
| Poles | 12 |
| Wire Size AWG | 16 |
| Application/Rating - IEC | IP 68, IP 67 |
| Voltage - Maximum | 600V AC/DC |
| Mounting Size | 1/2-14 NPT Mount |
| Material | Black Epoxy Zinc Die-cast |
| UL | E152210 |
| Termination Type | Wire Leads |
| Temperature Range - Operating | -20°C to +105°C |
| Length | 0.305 m |
| Material - Component | Zinc Die-Cast with Black Epoxy |
| Current - Maximum per Contact | 5 A |
| Wire/Cable Type | UL 1015 |
| Mounting Thread Size | 1/2" - 14 NPT |
| Package Quantity | 1 |
