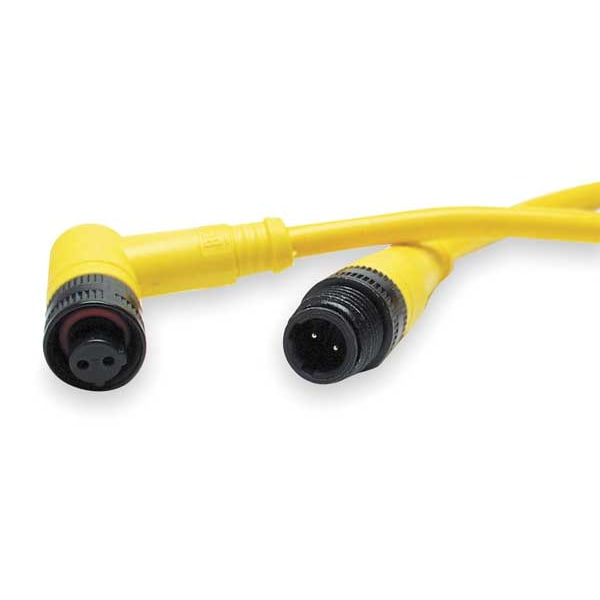

Cable de conexión, 3 pines, enchufe, macho.
| Item | Cordset |
|---|---|
| Cable Length | 12 ft |
| Jacket Color | Yellow |
| End 1 Number of Pins | 3 |
| Max. Voltage | 250 V AC, 250 V DC |
| End 1 Thread | 1/2"-20 |
| Wire Size | 22 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | 1/2 in |
| End 2 Connection Type | Bare Wire |
| End 1 Keyway | Dual |
| End 2 Gender and Plug End | Bare Wire |
| Temp. Range | -4 to 221 deg F |
| NEMA Rating | 6P |
| For Use With | AC Powered Sensors |
| Standards | CSA Certified, UL Listed |
| IP Rating | IP67, IP68 |
| Jacket Material | PVC |
| End 1 Gender and Plug End | Male Right Angle |
| Max. Amps | 4 |
| Number of Conductors | 3 |
| End 1 Number of Keyways | 2 |
| End 1 Mounting Orientation | Angle |
| Maximum Operating Temperature | 221 deg F |
| Minimum Operating Temperature | -4 deg F |
| Cable Jacket Material | PVC |
| Number of Wires | 3 |
| Cable Jacket Color | Yellow |
| Cordset Type | Single-Ended |
| End 1 Gender | Male |
| End 2 Gender | Not Applicable |
| Package Quantity | 1 |
