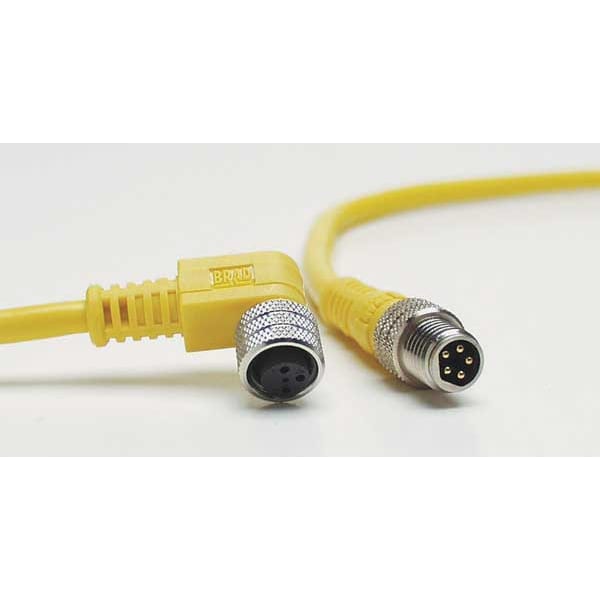

Cordset, 3 Pines, Receptáculo, Hembra
| Item | Cordset |
|---|---|
| Cable Length | 10 m |
| Jacket Color | Yellow |
| End 1 Number of Pins | 3 |
| End 1 Thread | M8 |
| Wire Size | 24 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | M8 |
| End 2 Connection Type | Bare Wire |
| End 2 Gender and Plug End | Bare Wire |
| Temp. Range | -4 to 221 deg F |
| Standards | CSA Certified, UL Listed |
| Features | Threaded Coupling to withstand Harsh Industrial Environments |
| IP Rating | IP67, IP68 |
| NEMA Rating | 6P |
| Max. Amps | 4 |
| Number of Conductors | 3 |
| Jacket Material | PVC |
| End 1 Gender and Plug End | Female Straight |
| Keyway | A-coded |
| Cordset Type | Single-Ended |
| End 1 Mounting Orientation | Straight |
| Minimum Operating Temperature | -4 deg F |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Yellow |
| Number of Wires | 3 |
| Maximum Operating Temperature | 221 deg F |
| End 1 Gender | Female |
| End 2 Gender | Not Applicable |
| Temperature Range - Operating | -20°C to +105°C |
| Orientation | Straight to Pigtail |
| Poles | 3 |
| CSA | LR6837 |
| Wire/Cable Type | UL 2661 |
| Color - Cable Jacket | Yellow |
| Wire Size AWG | 24 |
| Material - Cable Jacket | PVC |
| Material - O-Ring | Fluoro-elastomer |
| Material - Connector Body | TPE |
| Gender | Female-Pigtail |
| UL | E152210 |
| Material - Plating Mating | Gold |
| Material - Coupling Nut | Nickel-plated Brass |
| Current - Maximum per Contact | 3 A |
| Coupling Style | Threaded |
| LED Indicator | No |
| Voltage - Maximum | 60V AC / 75V DC |
| Cable Diameter | 4.32 mm |
| Package Quantity | 1 |
