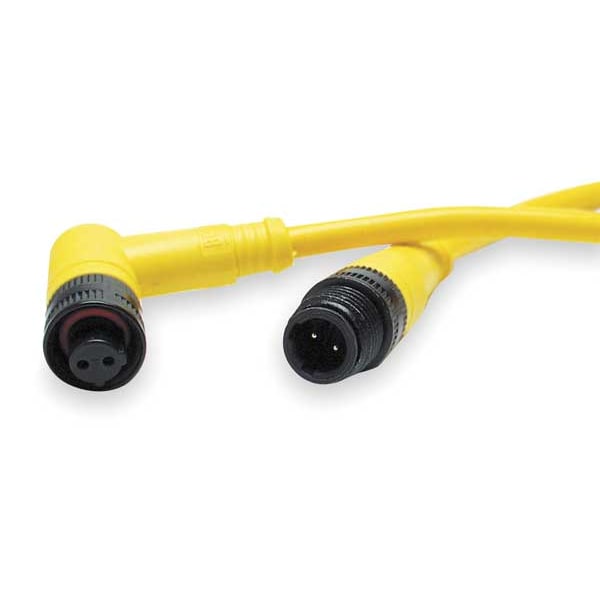

Cable de alimentación, 3 pines, receptáculo, hembra.
| Item | Cordset |
|---|---|
| Cable Length | 12 ft |
| Jacket Color | Yellow |
| End 1 Number of Pins | 3 |
| Max. Voltage | 250VAC/VDC |
| End 1 Thread | 1/2"-20 |
| Wire Size | 22 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | 1/2 in |
| End 2 Connection Type | Bare Wire |
| Number of Conductors | 3 |
| For Use With | AC Powered Sensors |
| End 1 Gender and Plug End | Female Right Angle |
| End 2 Gender and Plug End | Bare Wire |
| NEMA Rating | 6P |
| IP Rating | IP68 |
| Temp. Range | -4 to 221 deg F |
| Max. Amps | 4 |
| Jacket Material | PVC |
| Standards | CSA Certified, UL Listed |
| End 1 Keyway | Dual |
| Keyway | Dual |
| Color | Yellow |
| Features | Single End; Dual Keyway |
| End 1 Number of Keyways | 2 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Yellow |
| Minimum Operating Temperature | -4 deg F |
| Maximum Operating Temperature | 221 deg F |
| Cordset Type | Single-Ended |
| End 1 Gender | Female |
| End 1 Mounting Orientation | Angle |
| Number of Wires | 3 |
| Voltage | 250V AC/DC |
| End 2 Gender | Not Applicable |
| Application/Rating - NEMA | NEMA 6P |
| Angle | 90 Degree |
| Assembly Type | Cordset |
| Poles | 3-Pole |
| Connector Mating Size | 1/2"-20 UNF |
| Connector Material | PVC Body, Epoxy Coated Zinc Nut |
| Cable Type | PVC, 22 AWG |
| Wire-Pin Colors | Green, Red/Black, Red/White |
| Application/Rating - IEC | IP 68 |
| Package Quantity | 1 |
