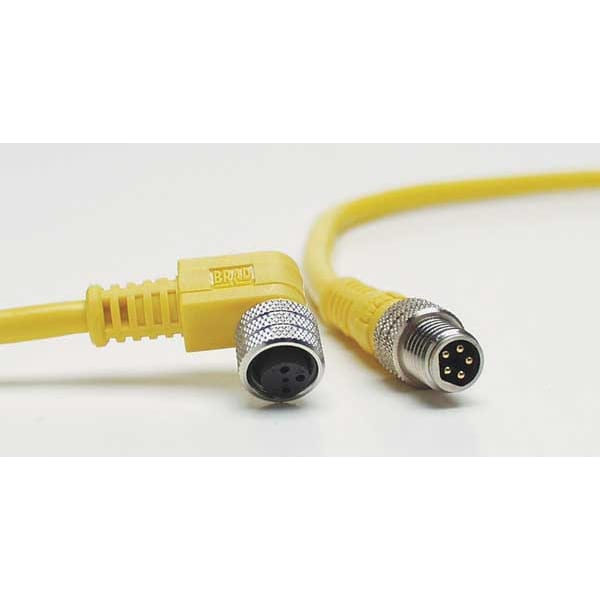

Conjunto de cables, 3 pines, receptáculo, macho.
| Item | Cordset |
|---|---|
| Cable Length | 1 ft |
| Jacket Color | Yellow |
| End 1 Number of Pins | 3 |
| Max. Voltage | 60VAC/75VDC |
| End 1 Thread | M8 |
| Wire Size | 24 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | M8 |
| End 2 Connection Type | Bare Wire |
| End 1 Gender and Plug End | Male Straight |
| Jacket Material | PVC |
| Temp. Range | -4 to 221 deg F |
| NEMA Rating | 6P |
| Number of Conductors | 3 |
| Standards | CSA Certified, UL Listed |
| Features | Threaded Coupling to withstand Harsh Industrial Environments |
| Max. Amps | 4 |
| IP Rating | IP68 |
| Keyway | None |
| Cable Jacket Color | Yellow |
| Minimum Operating Temperature | -4 deg F |
| End 1 Gender | Male |
| Number of Wires | 3 |
| Maximum Operating Temperature | 221 deg F |
| Cordset Type | Single-Ended |
| End 1 Mounting Orientation | Straight |
| Cable Jacket Material | PVC |
| End 2 Gender | Not Applicable |
| Poles | 3 |
| Process Temperature max. C | 260 |
| Duration at Max. Process Temperature (seconds) | 3 |
| Length | 0.3 m |
| Orientation | Straight |
| UL | E46237 |
| Voltage - Maximum | 60V AC / 75V DC |
| Coupling Type | External Thread |
| Gender | Male |
| Wire Size AWG | 24 |
| Panel Mount | Front |
| Max. Cycles at Max. Process Temperature | 3 |
| Temperature Range - Operating | -20°C to +105°C |
| Material - Component | Nickel-plated Brass |
| Current - Maximum per Contact | 4 A |
| Mounting Thread Size | M8 x 0.5 |
| CSA | LR6837 |
| Package Quantity | 1 |
