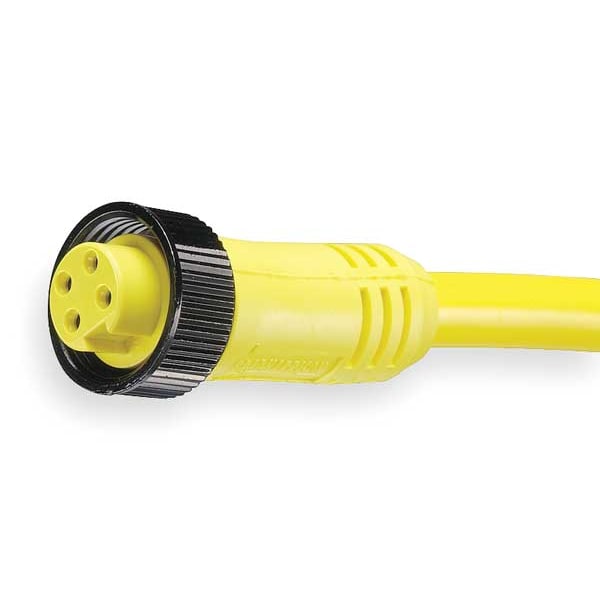

Cable de conexión, 4 pines, receptáculo, hembra
| Item | Cordset |
|---|---|
| Cable Length | 20 ft |
| Jacket Color | Yellow |
| End 1 Number of Pins | 4 |
| Max. Voltage | 600VAC/VDC |
| End 1 Thread | 7/8"-16 |
| Wire Size | 16 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | 7/8 in |
| End 2 Connection Type | Bare Wire |
| Jacket Material | PVC |
| Temp. Range | -4 to 221 deg F |
| Max. Amps | 10 |
| End 1 Keyway | Single |
| End 1 Gender and Plug End | Female Straight |
| NEMA Rating | 6P |
| Features | Low Resistance Contact Design with Gold over Palladium Nickel Plating; Single End; Single Keyway |
| IP Rating | IP68 |
| End 2 Gender and Plug End | Bare Wire |
| Number of Conductors | 4 |
| Standards | CSA Certified, IEC, UL Listed |
| Keyway | Single |
| Color | Black, White, Red, Green |
| End 1 Number of Keyways | 1 |
| End 1 Mounting Orientation | Straight |
| Minimum Operating Temperature | -4 deg F |
| Maximum Operating Temperature | 221 deg F |
| Cordset Type | Single-Ended |
| Cable Jacket Material | PVC |
| End 1 Gender | Female |
| Number of Wires | 4 |
| Cable Jacket Color | Yellow |
| Voltage | 600V AC/DC |
| End 2 Gender | Not Applicable |
| Application/Rating - NEMA | NEMA 6P |
| Connector Material | PVC Body, Epoxy Coated Zinc Nut |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| LED Indicator | No |
| Wire/Cable Type | STOOW |
| Material - Plating Mating | Gold |
| Material - Cable Jacket | PVC |
| Current - Maximum per Contact | 10 A |
| Temperature Range - Operating | -20°C to +105°C |
| Application/Rating - IEC | IP 68 |
| Connector Mating Size | 7/8"-16 UN |
| Material - Connector Body | PVC |
| Color - Cable Jacket | Yellow |
| Orientation | Straight to Pigtail |
| CSA | LR6837 |
| Wire Size AWG | 16 |
| UL | E152210 |
| Cable Type | PVC |
| Voltage - Maximum | 600 V |
| Cable Diameter | 10.67 mm |
| Poles | 4 |
| Gender | Female-Pigtail |
| Assembly Type | Cordset |
| Coupling Style | Threaded |
| Package Quantity | 1 |
