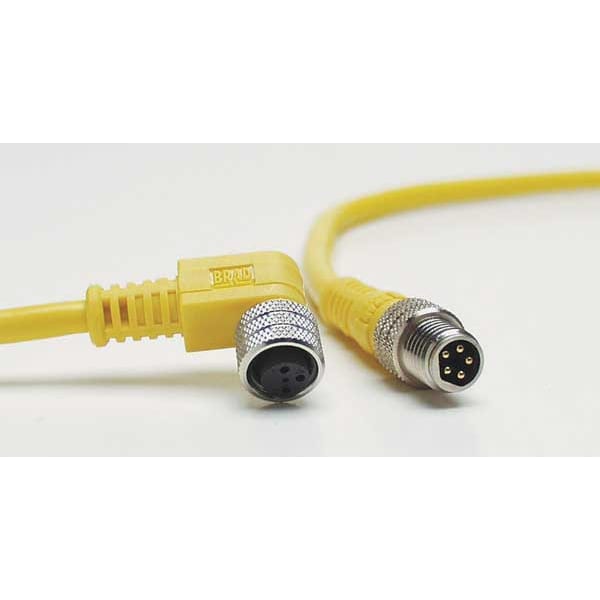

Cable conector, 4 pines, receptáculo, hembra
| Item | Cordset |
|---|---|
| Cable Length | 2 m |
| Jacket Color | Yellow |
| End 1 Number of Pins | 4 |
| End 2 Number of Pins | 4 |
| Max. Voltage | 60VAC/75VDC |
| End 1 Thread | M8 |
| End 2 Thread | M8 |
| Wire Size | 24 AWG |
| End 1 Connection Type | M8 |
| End 2 Connection Type | M8 |
| Jacket Material | PVC |
| Max. Amps | 4 |
| Number of Conductors | 4 |
| Standards | CSA Certified, UL Listed |
| NEMA Rating | 6P |
| End 1 Gender and Plug End | Female Straight |
| Features | Threaded Coupling to withstand Harsh Industrial Environments; Double End; Non Keyed |
| Temp. Range | -4 to 221 deg F |
| IP Rating | IP68 |
| End 2 Gender and Plug End | Male Straight |
| Keyway | A-coded |
| Color | Brown, White, Blue, Black |
| End 1 Mounting Orientation | Straight |
| Cable Jacket Material | PVC |
| Number of Wires | 4 |
| Cable Jacket Color | Yellow |
| Cordset Type | Double-Ended |
| End 1 Gender | Male |
| End 2 Mounting Orientation | Straight |
| Maximum Operating Temperature | 221 deg F |
| End 2 Gender | Female |
| Minimum Operating Temperature | -4 deg F |
| Voltage | 60 V AC, 75 V DC |
| Temperature Range - Operating | -20°C to +105°C |
| Current - Maximum per Contact | 4 A |
| Material - Plating Mating | Gold |
| Gender | Female-Male |
| Coupling Style | Threaded |
| Color - Cable Jacket | Yellow |
| UL | E152210 |
| Material - Coupling Nut | Nickel-plated Brass |
| LED Indicator | No |
| CSA | LR6837 |
| Material - Connector Body | TPE |
| Material - O-Ring | Fluoro-elastomer |
| Material - Cable Jacket | PVC |
| Wire Size AWG | 24 |
| Poles | 4 |
| Orientation | Straight to Straight |
| Wire/Cable Type | UL 2661 |
| Voltage - Maximum | 60V AC / 75V DC |
| Cable Diameter | 4.57 mm |
| Assembly Type | Cordset |
| Connector Material | Nickel Plated Brass Nut, TPE Body |
| Connector Mating Size | M8x1 |
| Cable Length - ft | 6.56 ft |
| Cable Type | PVC, 24 AWG |
| Application/Rating - IEC | IP 68 |
| Application/Rating - NEMA | NEMA 6P |
| Package Quantity | 1 |
