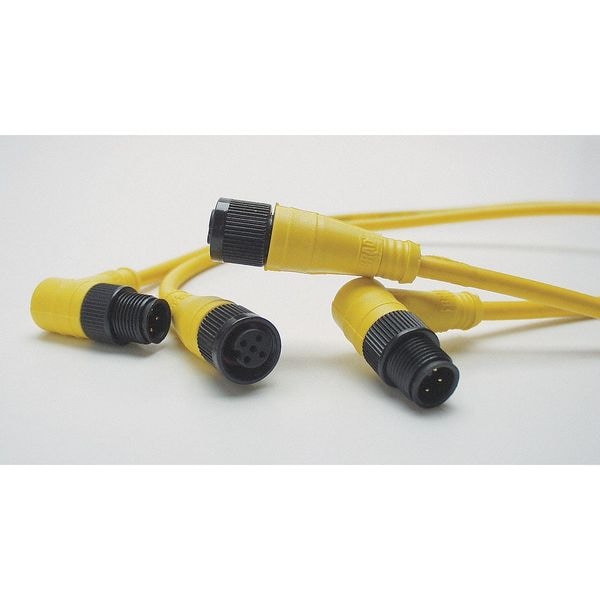

Cordset de 4 pines, receptáculo hembra.
| Item | Cordset |
|---|---|
| Cable Length | 10 m |
| Jacket Color | Yellow |
| End 1 Number of Pins | 4 |
| Max. Voltage | 250VAC/DC |
| End 1 Thread | M12 |
| Wire Size | 22 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | M12 |
| End 2 Connection Type | Bare Wire |
| Features | Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating; Single Ended; Single Keyway |
| Standards | CSA Certified, UL Listed |
| Jacket Material | PVC |
| Number of Conductors | 4 |
| Temp. Range | -20 to 105 deg C |
| End 1 Gender and Plug End | Female Right Angle |
| End 1 Keyway | Single |
| IP Rating | IP67 |
| NEMA Rating | 6P |
| End 2 Gender and Plug End | Bare Wire |
| Max. Amps | 4 |
| Keyway | Single |
| Color | Yellow |
| End 1 Number of Keyways | 1 |
| Minimum Operating Temperature | -4 deg F |
| End 1 Mounting Orientation | Angle |
| Cordset Type | Single-Ended |
| Number of Wires | 4 |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Yellow |
| Maximum Operating Temperature | 221 deg F |
| End 1 Gender | Female |
| End 2 Gender | Not Applicable |
| Material - Connector Body | PUR |
| Material - Cable Jacket | PVC |
| Application/Rating - IEC | IP 67 |
| CSA | LR6837 |
| Cable Length - ft | 32.81 ft |
| Material - Plating Mating | Gold |
| Material - Coupling Nut | Nickel-plated Brass |
| Poles | 4 |
| UL | E152210 |
| Coupling Style | Threaded |
| Wire Size AWG | 22 |
| Gender | Female-Pigtail |
| Temperature Range - Operating | -20°C to +105°C |
| Wire/Cable Type | E152210 |
| Material - O-Ring | Fluoro-elastomer |
| Connector Mating Size | M12x1 |
| Cable Diameter | 5.33 mm |
| Orientation | 90° to Pigtail |
| Connector Material | Nickel Plated Brass Nut, PUR Body |
| Voltage - Maximum | 250V AC/DC |
| Color - Cable Jacket | Yellow |
| Current - Maximum per Contact | 4 A |
| Angle | 90 Degree |
| LED Indicator | No |
| Assembly Type | Cordset |
| Cable Type | PVC, 22 AWG |
| Package Quantity | 1 |
