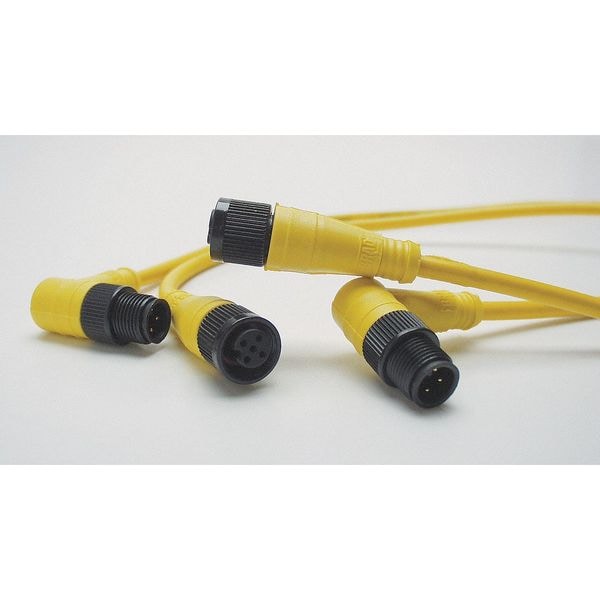

Conector de cable, 5 Pines, Receptáculo, Hembra.
| Item | Cordset |
|---|---|
| Cable Length | 2 m |
| Jacket Color | Yellow |
| End 1 Number of Pins | 5 |
| Max. Voltage | 300VAC/DC |
| End 1 Thread | M12 |
| Wire Size | 18 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | M12 |
| End 2 Connection Type | Bare Wire |
| Temp. Range | -20 to 105 deg C |
| Jacket Material | PVC |
| IP Rating | IP67 |
| End 1 Keyway | Single |
| Standards | CSA Certified, UL Listed |
| Number of Conductors | 5 |
| Features | Low Resistance Contact Design with Gold over Palladium Nickel Plating; Single End; Single Keyway |
| NEMA Rating | 6P |
| End 2 Gender and Plug End | Bare Wire |
| End 1 Gender and Plug End | Female Straight |
| Max. Amps | 4 |
| Keyway | Single |
| Color | Black, Blue, Green/Yellow, Brown, White |
| End 1 Number of Keyways | 1 |
| Cable Jacket Color | Yellow |
| Cordset Type | Single-Ended |
| Number of Wires | 5 |
| Minimum Operating Temperature | -4 deg F |
| Maximum Operating Temperature | 221 deg F |
| End 1 Gender | Female |
| End 1 Mounting Orientation | Straight |
| Cable Jacket Material | PVC |
| Voltage | 300V AC/DC |
| End 2 Gender | Not Applicable |
| Connector Mating Size | 7/8"-16 UN |
| Material - Connector Body | PVC |
| Material - Plating Mating | Gold |
| Cable Length - ft | 6 ft 6 in |
| Orientation | Straight to Pigtail |
| Assembly Type | Cordset |
| Gender | Female-Pigtail |
| Current - Maximum per Contact | 4 A |
| Cable Type | PVC, 18 AWG |
| Coupling Style | Threaded |
| LED Indicator | No |
| Cable Diameter | 7.14 mm |
| Poles | 5 |
| Wire Size AWG | 18 |
| Voltage - Maximum | 300 V |
| Application/Rating - NEMA | NEMA 6 |
| Material - Cable Jacket | PVC |
| CSA | LR6837 |
| Wire/Cable Type | AWM 2661 |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| Color - Cable Jacket | Yellow |
| Temperature Range - Operating | -20°C to +105°C |
| Application/Rating - IEC | IP 67 |
| Connector Material | PVC Body, Epoxy Coated Zinc Nut |
| Package Quantity | 1 |
