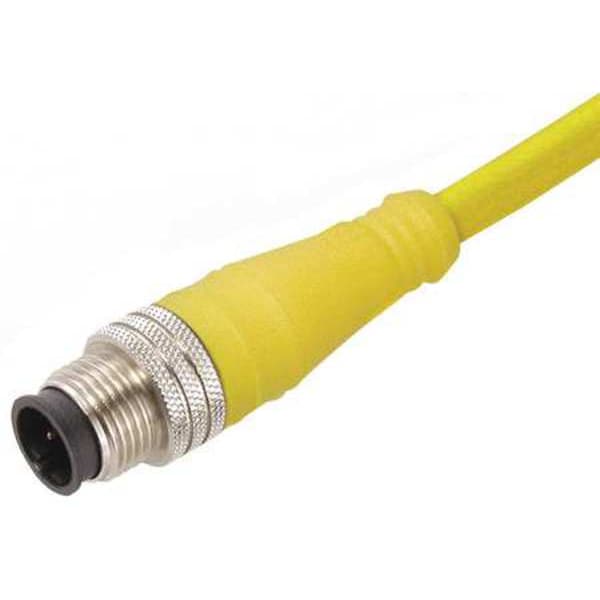

Cable conector, 8 pines, receptáculo, macho.
| Item | Cordset |
|---|---|
| Cable Length | 1 ft |
| Jacket Color | Yellow |
| End 1 Number of Pins | 8 |
| Max. Voltage | 600VAC/VDC |
| End 1 Thread | 1"-16 |
| Wire Size | 16 AWG |
| End 2 Thread | Not Applicable |
| End 1 Connection Type | 1 in |
| End 2 Connection Type | Bare Wire |
| Standards | CSA Certified, UL Listed |
| NEMA Rating | 6P |
| Temp. Range | -4 to 221 deg F |
| Number of Conductors | 8 |
| IP Rating | IP67, IP68 |
| Jacket Material | PVC |
| Max. Amps | 7 |
| End 1 Keyway | Single |
| End 1 Gender and Plug End | Male Receptacle |
| Features | Low Resistance Contact Design with Gold over Nickel Plating; Single Ended; Single Keyway |
| Color | Orange, Blue, White-Black Trace, Black, White, Red, Green, Red-Black Trace |
| Keyway | Single |
| End 1 Number of Keyways | 1 |
| Cordset Type | Single-Ended |
| Minimum Operating Temperature | -4 deg F |
| Cable Jacket Color | Yellow |
| End 1 Mounting Orientation | Straight |
| End 1 Gender | Male |
| Number of Wires | 8 |
| Maximum Operating Temperature | 221 deg F |
| Cable Jacket Material | PVC |
| End 2 Gender | Not Applicable |
| Material - Component | Zinc Die-Cast with Black Epoxy |
| UL | E152210 |
| Length | 0.305 m |
| Gender | Male |
| Voltage - Maximum | 600V AC/DC |
| Current - Maximum per Contact | 7 A |
| Poles | 8 |
| Orientation | Straight |
| Temperature Range - Operating | -20°C to +105°C |
| Coupling Type | External Thread |
| Wire Size AWG | 16 |
| Wire/Cable Type | UL 1015 |
| Mounting Thread Size | 1/2" - 14 NPT |
| CSA | LR6837 |
| Package Quantity | 1 |
