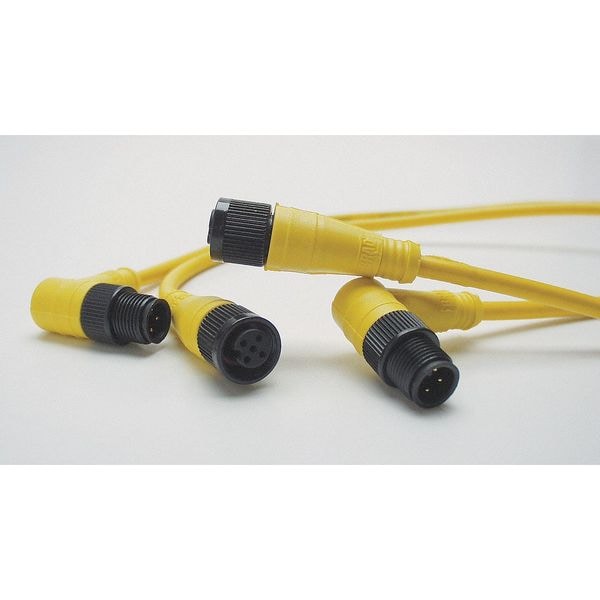

Cable de extensión, 3 pines, toma de corriente, hembra.
| Item | Extension Cordset |
|---|---|
| Cable Length | 2 m |
| Jacket Color | Yellow |
| End 1 Number of Pins | 3 |
| End 2 Number of Pins | 3 |
| Max. Voltage | 250VAC/DC |
| End 1 Thread | M12 |
| Wire Size | 22 AWG |
| End 2 Thread | M12 |
| End 1 Connection Type | M12 |
| End 2 Connection Type | M12 |
| Temp. Range | -4 to 221 deg F |
| Number of Conductors | 3 |
| Standards | CSA Certified, UL Listed |
| NEMA Rating | 6P |
| Features | Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating; Double Ended; Single Keyway |
| IP Rating | IP68 |
| Jacket Material | PVC |
| Max. Amps | 4 |
| End 1 Keyway | Single |
| End 2 Gender and Plug End | Male Straight |
| End 1 Gender and Plug End | Female Straight |
| End 2 Keyway | Single |
| Keyway | Single |
| For Use With | Heavy Duty Industrial Environments |
| Color | Brown, Blue, Black |
| End 2 Number of Keyways | 1 |
| End 1 Number of Keyways | 1 |
| Number of Wires | 3 |
| Minimum Operating Temperature | -4 deg F |
| End 1 Gender | Male |
| End 2 Mounting Orientation | Straight |
| Maximum Operating Temperature | 221 deg F |
| Cordset Type | Double-Ended |
| End 1 Mounting Orientation | Straight |
| End 2 Gender | Female |
| Cable Jacket Material | PVC |
| Cable Jacket Color | Yellow |
| Voltage | 250V AC/DC |
| Connector Material | PVC Body, Epoxy Coated Zinc Nut |
| Assembly Type | Cordset |
| Cable Type | PVC, 22 AWG |
| Application/Rating - NEMA | NEMA 6P |
| Application/Rating - IEC | IP 68 |
| Connector Mating Size | M12x1 |
| Poles | 3-Pole |
| Cable Length - ft | 6 ft 6 in |
| Package Quantity | 1 |
