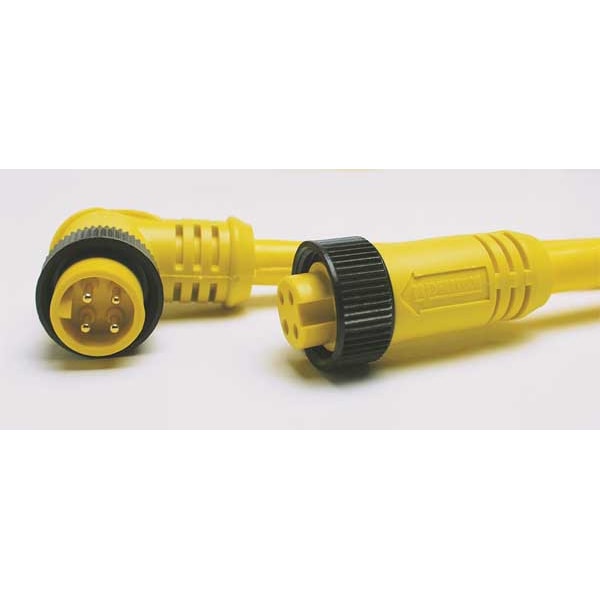

Cable de extensión, 5 pines, Receptáculo, Hembra
| Item | Extension Cordset |
|---|---|
| Cable Length | 6 ft |
| Jacket Color | Yellow |
| End 1 Number of Pins | 5 |
| Max. Voltage | 600 V AC, 600 V DC |
| End 2 Number of Pins | 5 |
| End 1 Thread | 7/8"-16 |
| End 2 Thread | 7/8"-16 |
| Wire Size | 16 AWG |
| End 1 Connection Type | 7/8 in |
| End 2 Connection Type | 7/8 in |
| End 2 Gender and Plug End | Male Straight |
| Number of Conductors | 5 |
| IP Rating | IP67, IP68 |
| Temp. Range | -4 to 221 deg F |
| NEMA Rating | 6P |
| End 1 Gender and Plug End | Female Straight |
| Standards | CSA Certified, UL Listed |
| Max. Amps | 8 |
| Jacket Material | PVC |
| End 1 Keyway | Single |
| Features | Patented Quad Beam(TM) Contact Provides High Reliability and Low Resistance |
| End 2 Keyway | Single |
| Keyway | Single |
| End 1 Number of Keyways | 1 |
| End 2 Number of Keyways | 1 |
| End 1 Gender | Male |
| End 1 Mounting Orientation | Straight |
| Cordset Type | Double-Ended |
| Maximum Operating Temperature | 221 deg F |
| End 2 Gender | Female |
| End 2 Mounting Orientation | Straight |
| Cable Jacket Material | PVC |
| Number of Wires | 5 |
| Cable Jacket Color | Yellow |
| Minimum Operating Temperature | -4 deg F |
| LED Indicator | No |
| Wire/Cable Type | STOOW |
| Color - Cable Jacket | Yellow |
| Current - Maximum per Contact | 8 A |
| Material - Cable Jacket | PVC |
| Gender | Female-Male |
| CSA | LR6837 |
| Coupling Style | Threaded |
| Voltage - Maximum | 600 V |
| Material - Coupling Nut | Black Epoxy Coated Zinc |
| Cable Diameter | 12.7 mm |
| Material - Connector Body | PVC |
| Orientation | Straight to Straight |
| Poles | 5 |
| Material - Plating Mating | Gold |
| UL | E152210 |
| Wire Size AWG | 16 |
| Temperature Range - Operating | -20°C to +105°C |
| Package Quantity | 1 |
