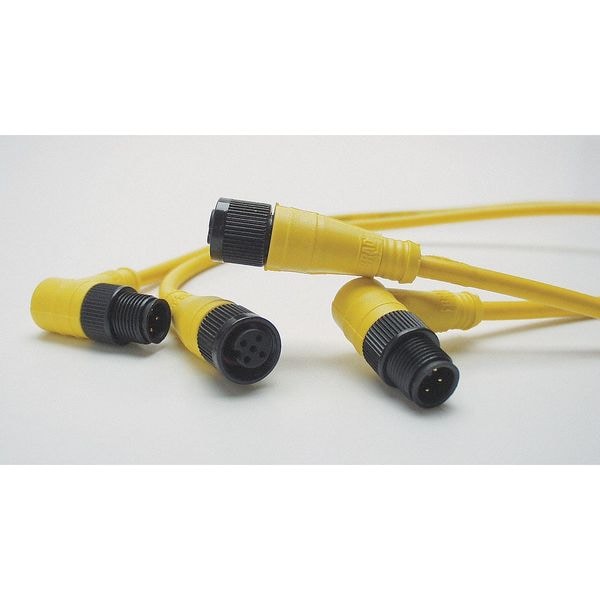

Cable de extensión, 5 pines, receptáculo, hembra.
| Item | Extension Cordset |
|---|---|
| Cable Length | 2 m |
| Jacket Color | Yellow |
| End 1 Number of Pins | 5 |
| Max. Voltage | 250VAC/DC |
| End 2 Number of Pins | 5 |
| End 1 Thread | M12 |
| Wire Size | 22 AWG |
| End 2 Thread | M12 |
| End 1 Connection Type | M12 |
| End 2 Connection Type | M12 |
| End 2 Keyway | Single |
| Max. Amps | 4 |
| Jacket Material | PVC |
| End 2 Gender and Plug End | Male Straight |
| End 1 Gender and Plug End | Female Straight |
| Number of Conductors | 5 |
| End 1 Keyway | Single |
| NEMA Rating | 6P |
| Features | Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating; Double End; Single Keyway |
| Temp. Range | -4 to 221 deg F |
| Standards | CSA Certified, UL Listed |
| IP Rating | IP68 |
| Keyway | Single |
| For Use With | Heavy Duty Industrial Environments |
| Color | Brown, White, Blue, Black, Gray |
| End 1 Number of Keyways | 1 |
| End 2 Number of Keyways | 1 |
| End 2 Gender | Female |
| Cordset Type | Double-Ended |
| Cable Jacket Material | PVC |
| End 2 Mounting Orientation | Straight |
| Minimum Operating Temperature | -4 deg F |
| End 1 Mounting Orientation | Straight |
| End 1 Gender | Male |
| Maximum Operating Temperature | 221 deg F |
| Number of Wires | 5 |
| Cable Jacket Color | Yellow |
| Wire Size AWG | 22 |
| Material - Connector Body | PVC |
| Wire/Cable Type | UL 2661 |
| Voltage - Maximum | 250V AC/DC |
| Gender | Female-Male |
| LED Indicator | No |
| Current - Maximum per Contact | 4 A |
| Material - Coupling Nut | Nickel-plated Brass |
| Temperature Range - Operating | -20°C to +105°C |
| Poles | 5 |
| Cable Diameter | 5.72 mm |
| CSA | LR6837 |
| Color - Cable Jacket | Yellow |
| UL | E152210 |
| Orientation | Straight to Straight |
| Coupling Style | Threaded |
| Material - O-Ring | Fluoro-elastomer |
| Material - Plating Mating | Gold |
| Material - Cable Jacket | PVC |
| Cable Type | PVC, 22 AWG |
| Cable Length - ft | 6.56 ft |
| Assembly Type | Cordset |
| Application/Rating - NEMA | NEMA 6P |
| Connector Material | PVC Body, Epoxy Coated Zinc Nut |
| Connector Mating Size | M12x1 |
| Application/Rating - IEC | IP 68 |
| Package Quantity | 1 |
