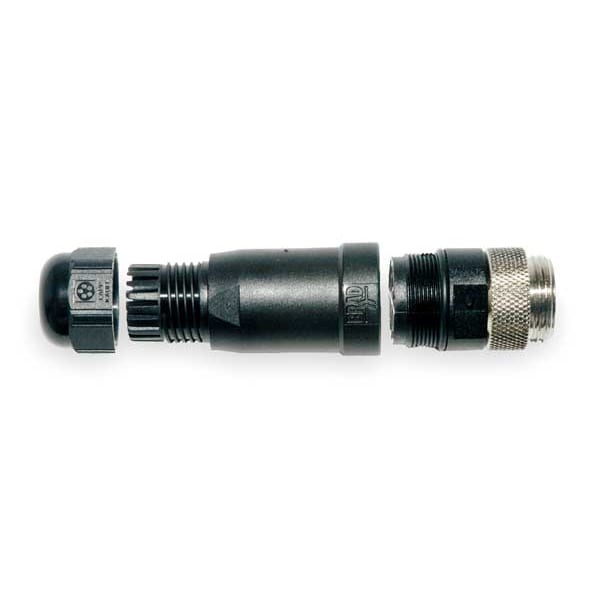

Conector de rosca externa, 3, macho, 24 AWG
| Item | Field Attachable Connector |
|---|---|
| Number of Pins | 3 |
| Plug or Connector Type | Male |
| Plug End | Straight |
| Max. Voltage | 600VAC/DC |
| Max. Current | 13 A |
| Wire Size | 24 AWG to 15 AWG |
| Threads | 7/8-16 |
| Body Material | Polyurethane |
| Face Dia. | 1 in |
| Standards | IEC, UL |
| Keyway | Single |
| Color | Black |
| NEMA Rating | 6P |
| IP Rating | IP67, IP68 |
| Temp. Range | -40 to 176 deg F |
| Features | Single Keyway |
| Max. Amps | 13 |
| Voltage - Maximum | 600V AC/DC |
| Cable Diameter | 5.08-11.43mm (.200-.450") |
| Coupling Type | External Thread |
| Material - Plating Mating | Gold |
| Gender | Male |
| Orientation | Straight |
| CSA | LR6837 |
| Poles | 3 |
| Current - Maximum per Contact | 13 A |
| Temperature Range - Operating | -20°C to +80°C |
| Material - Connector Body | Nylon |
| Material - Coupling Nut | Nickel-plated Brass |
| Wire Size AWG | 15 to 24 |
| Connector Type | Male Ctr |
| Cable Range | 5.08-11.4 mm (0.20-0.45 in.) OD |
| Connector Mating Size | 7/8-16 UN |
| Material | Nickel-plated Brass Nut, Nylon Body |
| Application/Rating - IEC | IP 67 |
| Package Quantity | 1 |
