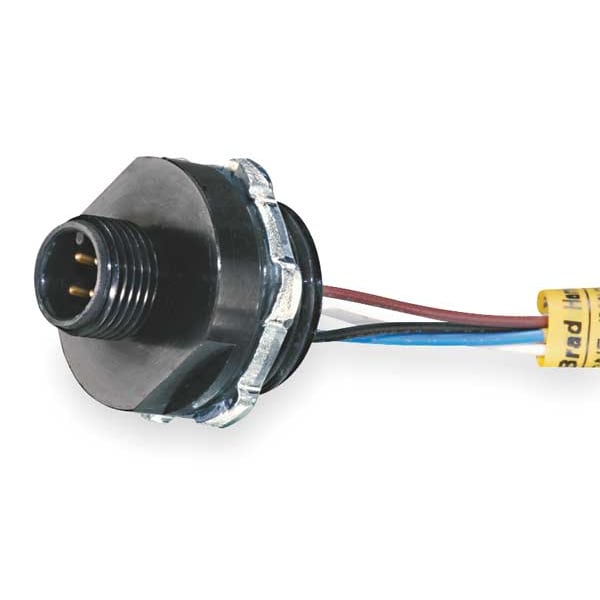

Receptáculo de rosca externa, 4, macho, calibre 22 AWG.
| Item | Field Attachment Connector |
|---|---|
| Number of Pins | 4 |
| Cable Length | 4.10mm to 8.10mm |
| Plug or Connector Type | Male |
| Plug End | Straight |
| Max. Voltage | 250VAC/DC |
| Max. Current | 4 A |
| Wire Size | 18 AWG |
| Threads | M12 |
| Color | Black |
| Keyway | Single |
| Face Dia. | 0.374 in |
| Body Material | PVC |
| NEMA Rating | 6P |
| Wire Length | 1 ft |
| Standards | IEC, UL |
| For Use With | All Standard Single Keyway M12 Receptacles And Cordsets |
| IP Rating | IP68 |
| Max. Amps | 4 |
| Temp. Range | -13 to 194 deg F |
| Features | Quick-Disconnect Design; Single Keyway |
| Type | Male, Micro Receptacle |
| Gender | Male |
| Voltage - Maximum | 250V AC/DC |
| Panel Mount | Front |
| Wire Size AWG | 22 |
| Coupling Type | External Thread |
| UL | E152210 |
| Length | 0.305 m |
| Temperature Range - Operating | -20°C to +80°C |
| Wire/Cable Type | Leads, UL 1061 |
| Orientation | Straight |
| Poles | 4 |
| Current - Maximum per Contact | 4 A |
| Mounting Thread Size | 1/2" - 14 NPT |
| Material - Component | Annodized Aluminum |
| CSA | LR6837 |
| Mounting Size | 1/2-14 NPT Mount |
| Connector Mating Size | M12x1 |
| Application/Rating - NEMA | NEMA 6P |
| Material | Black Anodized Aluminum |
| Termination Size | 22 AWG |
| Application/Rating - IEC | IP 68, IP 67 |
| Wire-Pin Colors | Black, White, Blue, Black |
| Termination Type | Wire Leads |
| Package Quantity | 1 |
