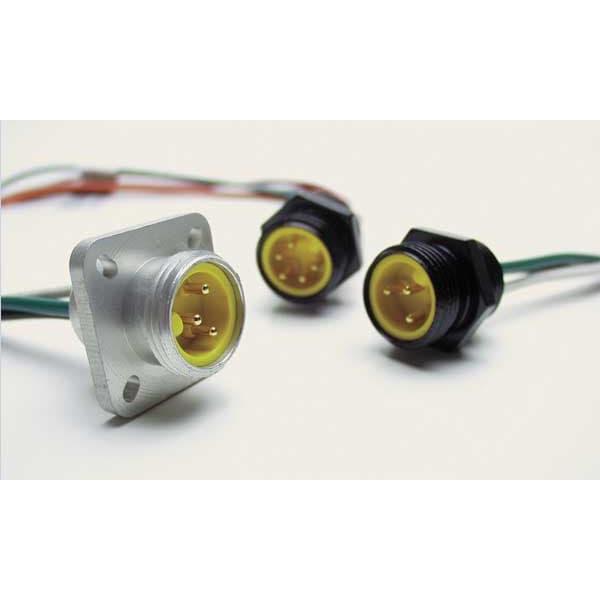

Receptáculo de rosca externa, 6, macho, 16 AWG
| Item | External Thread Receptacle |
|---|---|
| Number of Pins | 6 |
| Plug or Connector Type | Male |
| Jacket Color | Black |
| Plug End | Straight |
| Max. Voltage | 600VAC/DC |
| Max. Current | 8 A |
| Wire Size | 16 AWG |
| Threads | 7/8-16 |
| Body Material | PVC |
| NEMA Rating | 6P |
| Face Dia. | 1 in |
| Wire Length | 1 ft |
| Color | Yellow |
| Standards | UL Listed / CSA Certified |
| Keyway | Single |
| Max. Amps | 8 |
| IP Rating | IP68 |
| Features | Low-Resistance Contact Design With Gold/Palladium Nickel Plating |
| Temp. Range | -4 to 221 deg F |
| Coupling Type | External Thread |
| Gender | Male |
| Poles | 6 |
| Current - Maximum per Contact | 8 A |
| Voltage - Maximum | 600V AC/DC |
| CSA | LR6837 |
| Mounting Thread Size | 1/2" - 14 NPT |
| UL | E152210 |
| Length | 0.305 m |
| Wire/Cable Type | UL 1015 |
| Temperature Range - Operating | -20°C to +105°C |
| Orientation | Straight |
| Wire Size AWG | 16 |
| Material - Component | Zinc Die-Cast with Black Epoxy |
| Package Quantity | 1 |
