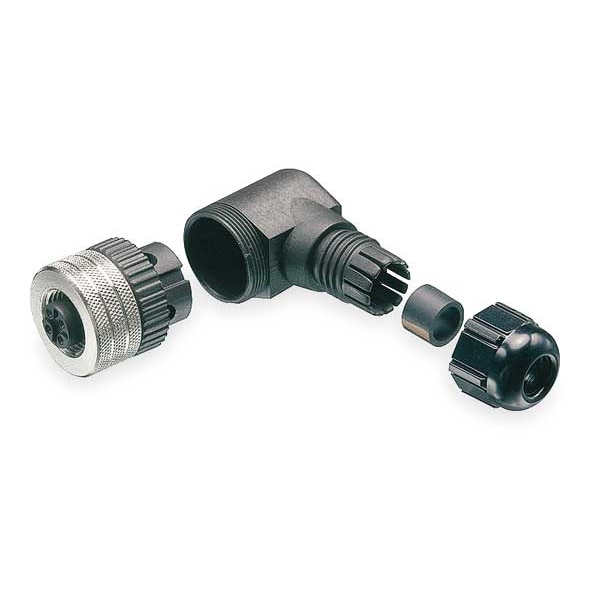

Conector de rosca interna, 4, hembra, M12
| Item | Field Attachment Connector |
|---|---|
| Number of Pins | 4 |
| Cable Length | 3.30mm to 6.60mm |
| Plug or Connector Type | Female |
| Plug End | 90 Degrees |
| Max. Voltage | 250VAC/DC |
| Max. Current | 4 A |
| Wire Size | 18 AWG |
| Threads | M12 |
| NEMA Rating | 6P |
| Keyway | Single |
| Color | Black |
| Face Dia. | 0.374 in |
| Body Material | Polyamide |
| Standards | IEC, UL |
| Temp. Range | -13 to 194 deg F |
| IP Rating | IP68 |
| Max. Amps | 4 |
| Features | Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating; Single End; Dual Keyway |
| For Use With | All Standard Single Keyway M12 Receptacles And Cordsets |
| Voltage | 250 V AC, 300 V DC |
| Material - Connector Body | Polyamide |
| Gender | Female |
| Material - Coupling Nut | Brass |
| Temperature Range - Operating | -25°C to +90°C |
| Material - Plating Mating | Silver |
| Cable Diameter | 3.30-6.60mm (.130-.260") |
| Current - Maximum per Contact | 4 A |
| CSA | LR6837 |
| Coupling Type | Internal Thread |
| Poles | 4 |
| Voltage - Maximum | 250V AC / 300V DC |
| Orientation | 90° Angle |
| Angle | 90 Degree |
| Application/Rating - NEMA | NEMA 6P |
| Application/Rating - IEC | IP 68 |
| Material | Nickel-plated Brass Nut, Shell |
| Connector Mating Size | M12x1 |
| Cable Range | 3.3-6.6mm( 0.13-0.26") OD |
| Cable Nut Thread | PG 7 |
| Terminals | Screw |
| Connector Type | Female |
| Package Quantity | 1 |
