1" x 3/16" White Wire Marking Sleeves, 3FR-094-2-WT-2
| Color | White |
|---|---|
| Printer Series Compatibility | BBP72, i7100, THT |
| Height | 3/16 in |
| Item | Precut Label Roll |
| Legend | None |
| Material | Brady B-344 Fluid-Resistant Polyolefin Heat Shrinkable Sleeve |
| Width | 1 in |
| Temp. Range | -67 to 275 deg F |

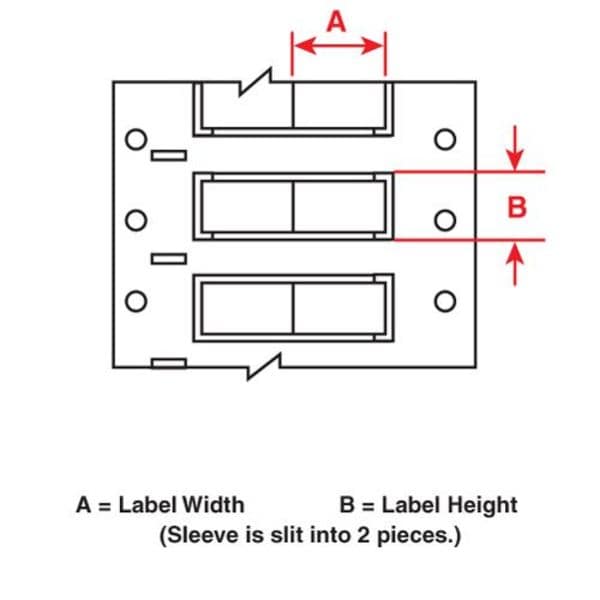

| Label Width | 3/32 in |
| Label Height | 1 in |
| Labels per Roll | 5,000 |
| Max. Lines of Print | Varies |
| Shrink Ratio | 3:1 |
| For Use With | Thermal Transfer Printers |
| Min. Wire Size | 0.031 in |
| Max. Wire Size | 0.08 in |
| Standards | Method 215K, MIL-STD-202G, SAE-AMS-DTL-23053/6 (Class 1) for Insulation Sleeving, SAE-AS-81531 Marking of Electrical Insulating Materials |
| Application | Wire and Cable Labeling |
| Label Material | Polyolefin |
| Adhesive | Non-Adhesive |
| Adhesive Material | Not Applicable |
| Product Type | Wire Marking Sleeve |
| Recommended Ribbon | IP-R6600, R6600 |
| Minimum Service Temperature | -67 deg F |
| Double-Sided Printable | Yes |
| Label Media Format | Precut Roll |
| Labels per Row | 2 |
| Maximum Wire Diameter | 0.45 in |
| Material Series | B-344 |
| Label Color | White |
| Compatible Mfr Part Number | IP-R6600, R6600 |
| Core Diameter | 3 in |
| Minimum Wire Diameter | 0.19 in |
| Label Attachment Style | Heat Shrink Sleeve |
| For Print Method | Thermal-Transfer |
| Minimum Wire Gauge | 8 AWG |
| Resistance Properties | Chemical-Resistant, Flame-Resistant, Fluid-Resistant |
| Material Properties | Heat-Shrinkable |
| Maximum Wire Gauge | 1 AWG |
| Maximum Service Temperature | 267 deg F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
