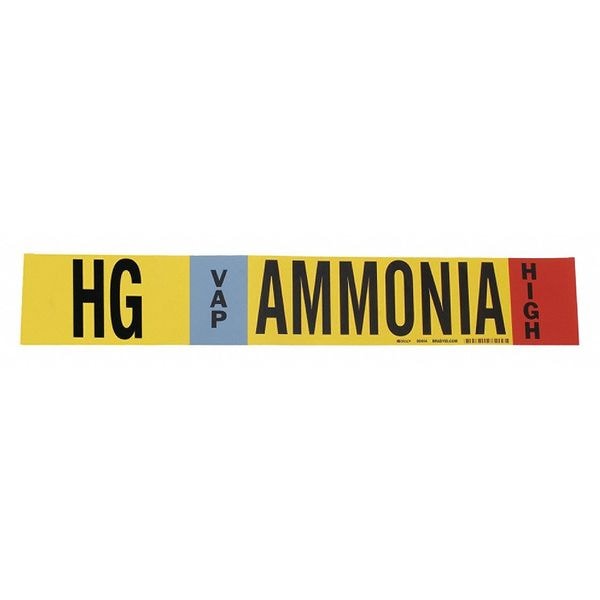

Ammonia Pipe Marker, HG, 8In and Above, 59923
| Item | Pipe Marker |
|---|---|
| Width | 24 in |
| Thickness | 0.005 in |
| Height | 4 in |
| Standards | ANSI A13.1-2007 |
| Background Color | Yellow |
| Roll Length | 4 in |
| Reflective | No |
| With or Without Arrows | With |
| Legend | Ammonia |
| Material | Fiberglass Plastic |
| Legend Color | Black, White, Sky Blue, Red |
| Marker Attachment Style | Snap-On |
| Laminated | Yes |
| Language | English |
| Pressure Level | High |
| Fits Pipe O.D. | 8 in and Larger |
| Average Outdoor Durability | 5 to 8 yr |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Adhesive | Yes |
| Physical State | Vapor |
| Character Height | 3-1/2 in |
| IIAR Abbreviation | HG |
| IIAR System Abbreviation | HG |
| UV Resistant | No |
| Roll Width | 24 in |
| NFPA 99, CGA C-9 | No |
| Humidity Resistant | No |
| Pipe Marker Mounting Style | Fiberglass Carrier with Strapping and Mounting Clip Pipe Markers |
| Pipe Marker Legend | Ammonia |
| Protective Coating | No Protective Coating |
| ISO 14726 | No |
| Maximum Service Temperature | 230 deg F |
| Water Resistant | No |
| Pipe Marker Package Type | Each |
| IIAR Phase | VAP |
| Weather Resistant | No |
| Pipe Marker Material | Plastic |
| Legend Text Color | Black, White, Blue, Red |
| Abrasion Resistant | Yes |
| Printed Language | English |
| Minimum Application Temperature | 0 deg F |
| IIAR Pressure Level | High |
| ANSI/ASME A13.1 | Yes |
| Minimum Service Temperature | -40 deg F |
| Chemical Resistant | Yes |
| Number of Pipe Markers | 1 |
| Minimum Pipe O.D. | 8 in |
| Glow In The Dark | No |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
