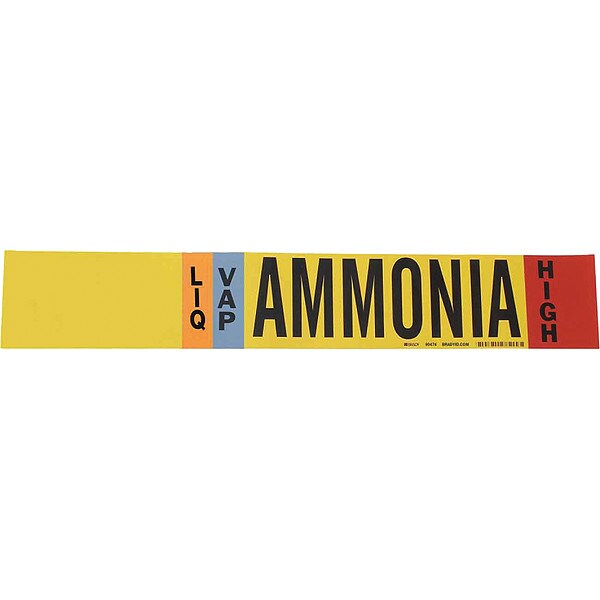

Ammonia Pipe Marker, IIAR, 8In and Above, 90474
| Item | Pipe Marker |
|---|---|
| Width | 24 in |
| Thickness | 0.004 in |
| Height | 4 in |
| Standards | ANSI A13.1-2007 |
| Background Color | Yellow |
| Roll Length | 4 in |
| With or Without Arrows | Without |
| Reflective | No |
| Legend | Ammonia |
| Material | vinyl |
| Legend Color | Black, White, Sky Blue, Orange, Red |
| Character Height | 3-1/2 in |
| Language | English |
| Adhesive | Yes |
| Physical State | Vapor, Liquid |
| IIAR Abbreviation | Blank |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Fits Pipe O.D. | 8 in and Larger |
| Marker Attachment Style | Self-Adhesive |
| Average Outdoor Durability | 8 to 10 yr |
| Pressure Level | High |
| IIAR System Abbreviation | Blank |
| NFPA 99, CGA C-9 | No |
| Pipe Marker Legend | Ammonia |
| Water Resistant | No |
| UV Resistant | No |
| Finish | Glossy |
| IIAR Phase | VAP, LIQ |
| Maximum Service Temperature | 180 deg F |
| Legend Text Color | Black, White, Blue, Orange, Red |
| Humidity Resistant | No |
| Glow In The Dark | No |
| Minimum Service Temperature | -40 deg F |
| ISO 14726 | No |
| Chemical Resistant | Yes |
| Printed Language | English |
| Pipe Marker Package Type | Card |
| Adhesive Pipe Marker Format | Die-Cut, on Cards |
| Abrasion Resistant | Yes |
| IIAR Pressure Level | High |
| Pipe Marker Material | Plastic |
| Minimum Pipe O.D. | 8 in |
| Protective Coating | No Protective Coating |
| Roll Width | 24 in |
| Minimum Application Temperature | 0 deg F |
| Pipe Marker Mounting Style | Adhesive Pipe Marker |
| Number of Pipe Markers | 1 |
| ANSI/ASME A13.1 | Yes |
| Weather Resistant | Yes |
| Adhesive Style | Permanent |
| Adhesive Material | Acrylic |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
