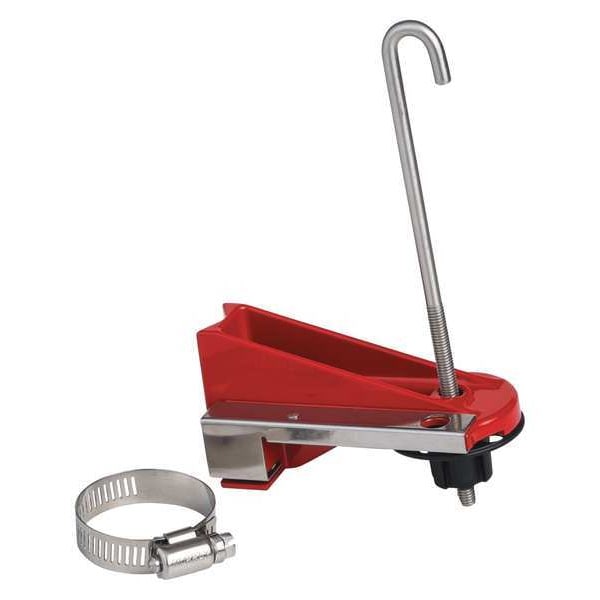

Ball Valve Lockout, 1/2 to 2 in.
| Item | Ball Valve Lockout |
|---|---|
| Lockout Material | Steel |
| Lockout Color | Red |
| For Maximum Padlock Shackle Diameter | 5/16 in |
| Maximum Number of Padlocks | 1 |
| Overall Height | 2.2 in |
| Overall Width | 4.26 in |
| For Use With | Closed Valves |
| For Handle Type | Quarter Turn Handle |
| Valve Lockout Type | Permanent Mount |
| Overall Depth | 1.95 in |
| Standards | ANSI Z24, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Fits Handle Size | Up to 7/16" Thickness |
| Fits Pipe Size | 1/2 to 2 in |
| Temp. Range | -40 to 194 deg F |
| Minimum Temperature | -40 deg F |
| Maximum Temperature | 194 deg F |
| For Maximum Pipe Size | 2 in |
| Resistance Properties | Chemical Resistant |
| Features | One-time installation is easy to complete in just a few minutes, Permanently mounts to valve body or pipe, Equipping your employees with the proper lockout tools |
| Overall Length | 6.13 in |
| For Maximum Handle Thickness | 3/4 in |
| For Minimum Pipe Size | 1/2 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
