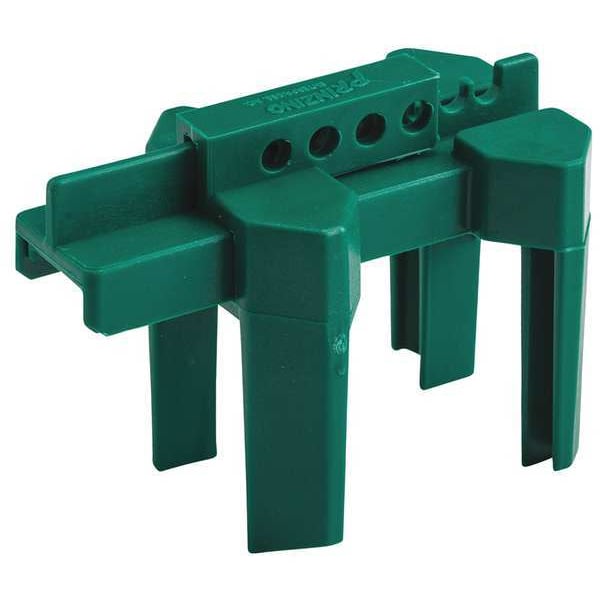

Ball Valve Lockout, Grn, 1/2 to 2-1/2 In.
| Item | Ball Valve Lockout |
|---|---|
| Lockout Material | Polypropylene |
| Lockout Color | Green |
| For Maximum Padlock Shackle Diameter | 3/8 in |
| Maximum Number of Padlocks | 2 |
| Overall Height | 4.07 in |
| Overall Width | 5.29 in |
| For Use With | Valves and Pipes |
| For Handle Type | Quarter Turn Handle |
| Valve Lockout Type | Clamp On |
| Overall Depth | 3.05 in |
| Standards | ANSI Z24, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Fits Handle Size | 1" to 2-1/2" |
| Fits Pipe Size | 1/2 to 2-1/2 in |
| Includes | (2) Ball Valve Lockout Halves (Part X and Y) |
| Temp. Range | 0 to 175 deg F |
| Resistance Properties | Chemical Resistant |
| Maximum Temperature | 175 deg F |
| Minimum Temperature | 0 deg F |
| For Maximum Handle Thickness | 1/2 in |
| For Maximum Handle Width | 1 in |
| For Maximum Pipe Size | 2-1/2 in |
| For Minimum Pipe Size | 1/2 in |
| Features | Small Ball Valve Lockout Device locks out pipes, Equipping your employees with the proper lockout tools, world leader in lockout/tagout products and services offering industry expertise |
| Overall Length | 5-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
