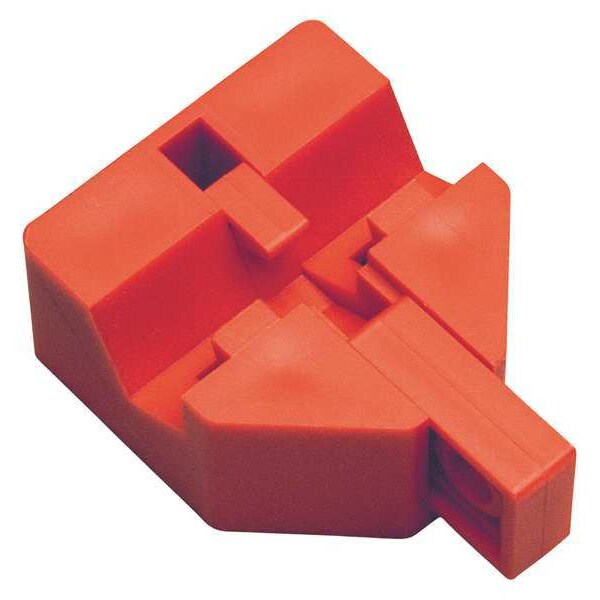

Breaker Lockout
| Item | Multi-Pole Breaker Lockout |
|---|---|
| Maximum Number of Padlocks | 1 |
| Material | Polycarbonate |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| Color | Red |
| Overall Width | 2.6 in |
| Overall Length | 2-1/4 in |
| Overall Height | 1.87 in |
| Standards | ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Length | 2-1/4 in |
| Includes | No Padlock |
| Lockout Type | Snap-On |
| Height | 13/16 in |
| Max. Number of Padlocks | 1 |
| Circuit Breaker Voltage | 120/277 |
| Width | 1-7/8 in |
| Padlock Shackle Max. Dia. | 9/32 in |
| For Use With | Multi-Pole Breakers |
| OSHA Compliant | Yes |
| For Voltage | 120/277V AC |
| For Circuit Breaker Type | Multipole |
| Resistance Properties | Chemical Resistant |
| Mount Type | Tie Bar |
| Maximum Temperature | 170 deg F |
| Lockout Material | Polycarbonate |
| Features | Isolates and Secures Circuit Breaker Switches |
| Minimum Temperature | -20 deg F |
| Circuit Breaker Lockout Type | Tie Bar |
| Overall Depth | 0.82 in |
| Lockout Color | Red |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
