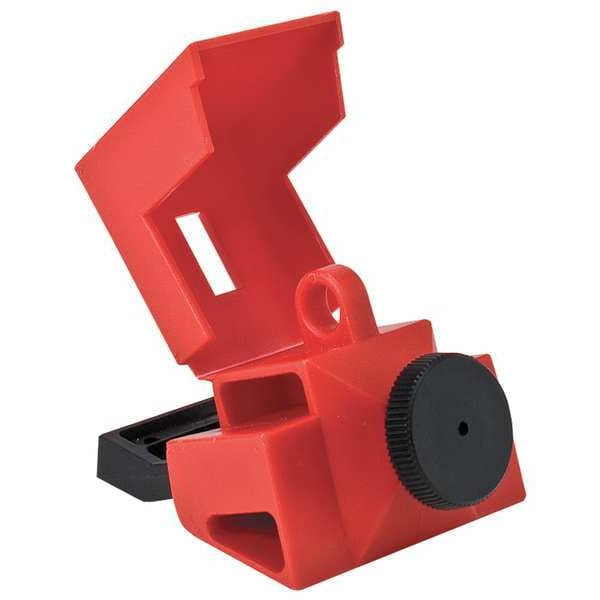

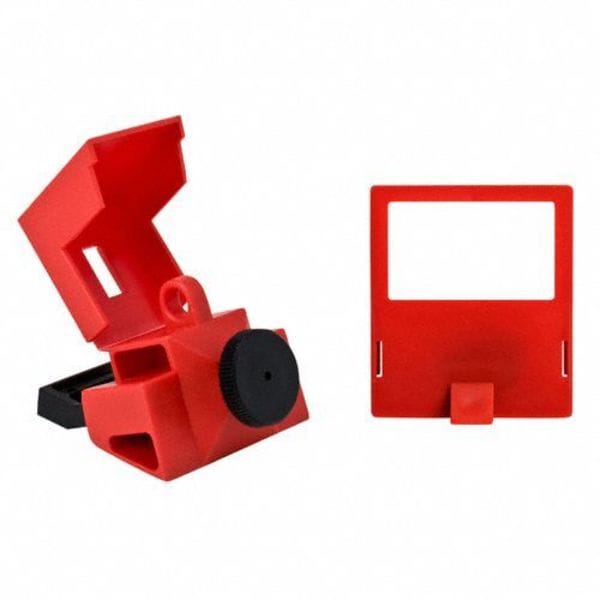

Circuit Breaker Lockout, Clamp-On, For 480/600V AC Volt, For Single Pole Circuit Breaker Type
| Item | Circuit Breaker Lockout |
|---|---|
| Maximum Number of Padlocks | 1 |
| Material | Polypropylene and Nylon |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| Color | Red |
| Overall Width | 3-1/4 in |
| Overall Length | 2.19 in |
| Overall Height | 1.59 in |
| Standards | ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Length | 2-3/16 in |
| Height | 3-1/4 in |
| Padlock Shackle Max. Dia. | 9/32 in |
| Max. Number of Padlocks | 1 |
| Circuit Breaker Poles | 1 |
| For Use With | Internal-Trip Multi-Pole Breakers, Padlocks with Shackle up to 9/32 in Diameter, Single-Pole Breakers |
| Lockout Type | Clamp-On |
| OSHA Compliant | Yes |
| Circuit Breaker Voltage | 480/600 |
| Width | 1-9/16 in |
| Includes | Cleat |
| Lockout Material | Polypropylene |
| Circuit Breaker Lockout Type | Clamp-On |
| Overall Depth | 2.18 in |
| For Voltage | 480/600V AC |
| Mount Type | Clamp-On |
| Resistance Properties | Chemical Resistant |
| For Maximum Switch Width | 0.28 in |
| For Circuit Breaker Type | Single Pole |
| Lockout Color | Red |
| Minimum Temperature | -4 deg F |
| Maximum Temperature | 176 deg F |
| Products By Industry | Electrical |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
