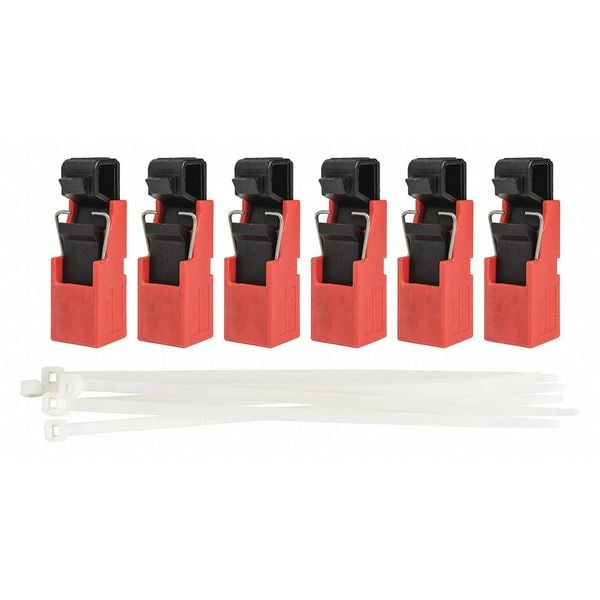

Circuit Breaker Lockout Rail, Circuit Breaker with Standard Nylon Cable Ties, 120/277V AC, 1 Poles
| Item | Circuit Breaker Lockout Rail |
|---|---|
| For Use With | Circuit Breaker with Standard Nylon Cable Ties |
| Voltage | 120/277V AC |
| Number of Poles | 1 |
| Circuit Breaker Voltage | 120/277 |
| Length | 2-7/16 in |
| Padlock Shackle Max. Dia. | 9/32 in |
| OSHA Compliant | No |
| Features | No Lock Needed, ID Tags can be Pre-Loaded onto Taglock Devices |
| Includes | (6) TagLock Lockouts |
| Lockout Type | Standard, Pin-In |
| Max. Number of Padlocks | 1 |
| Width | 15/16 in |
| Material | Fiberglass Reinforced Nylon |
| Height | 2-7/16 in |
| Circuit Breaker Poles | 1 |
| Color | Red |
| Housing Material | Fiberglass Reinforced Nylon |
| Depth | 2.446 in |
| Standards | ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Dimensions | 0.74 in H x 0.934 in W x 2.446 in D |
| Length (Straight Wireway) | 2-7/16 in |
| Overall Length | 2.44 in |
| Overall Depth | 0.74 in |
| Resistance Properties | Chemical Resistant |
| Maximum Number of Padlocks | 1 |
| Language | English |
| For Switch Hole Type | Holed Tongue |
| For Circuit Breaker Manufacturer | TagLock |
| Mount Type | Cable Tie |
| Lockout Material | Fiberglass Reinforced Nylon |
| Lockout Color | Red |
| For Circuit Breaker Type | Single Pole |
| Circuit Breaker Lockout Type | Snap-On |
| Minimum Temperature | -4 deg F |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| Overall Height | 0.93 in |
| For Voltage | 120/277V AC |
| Overall Width | 2.45 in |
| Labeling | Tag Included |
| Maximum Temperature | 248 deg F |
| Package Quantity | 1 |
