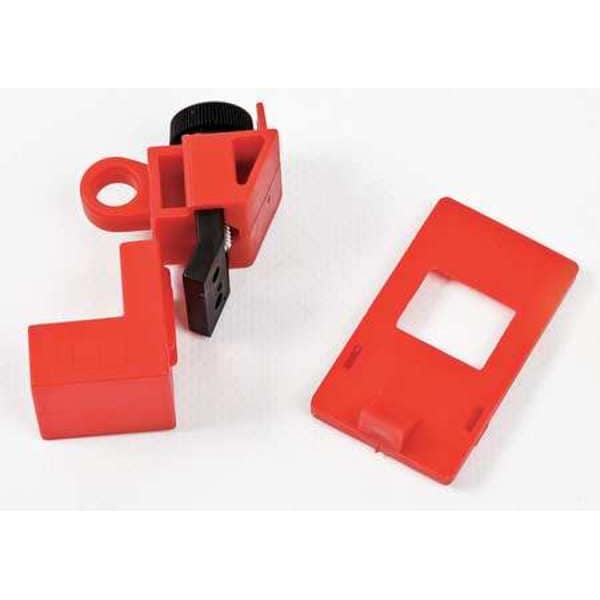

Clamp-On Circuit Breaker Lockout, No Hole, 120/277V AC, Red
| Item | Circuit Breaker Lockout |
|---|---|
| Maximum Number of Padlocks | 1 |
| Material | Polypropylene and Nylon |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| Color | Red |
| Overall Width | 0.95 in |
| Overall Length | 0.63 in |
| Overall Height | 0.95 in |
| Standards | RoHS 2011/65/EU Compliant, RoHS 2015/863 Compliant |
| Length | 5/8 in |
| Lockout Type | Clamp-On |
| Max. Number of Padlocks | 1 |
| Height | 2-3/16 in |
| Padlock Shackle Max. Dia. | 9/32 in |
| Width | 15/16 in |
| OSHA Compliant | Yes |
| Circuit Breaker Voltage | 120/277 |
| For Use With | Internal-Trip Multi-Pole Breakers, Padlocks with Shackle up to 9/32 in Diameter, Single-Pole Breakers |
| Includes | Cleat |
| Circuit Breaker Poles | 1 |
| For Maximum Switch Width | 0.28 in |
| Minimum Temperature | -4 deg F |
| Lockout Material | Polypropylene |
| Lockout Color | Red |
| For Voltage | 120/277V AC |
| For Circuit Breaker Type | Single Pole |
| Resistance Properties | Chemical Resistant |
| Circuit Breaker Lockout Type | Clamp-On |
| Overall Depth | 1 in |
| Maximum Temperature | 176 deg F |
| Mount Type | Clamp-On |
| Products By Industry | Electrical |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
