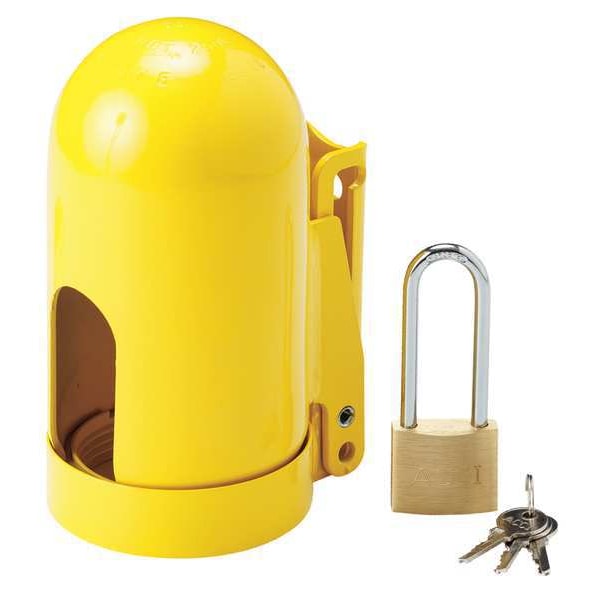

Locking Cylinder Cap, 6-1/2 x 3-1/8, Corse
| Item | Locking Cylinder Cap |
|---|---|
| Material | Steel |
| Max. Number of Padlocks | 1 |
| For Maximum Padlock Shackle Diameter | 3/8 in |
| Lockout Color | Yellow |
| Standards | DOT |
| Includes | (1) Brass Padlock, (1) Lockout Device, (3) Keys |
| Size | 6-1/2 in x 3-1/8 in |
| OSHA Compliant | Yes |
| Neck Ring Diameter | 3-1/8 in |
| Thread Size | 11 UNC |
| Cylinder Lockout Pressure Type | High |
| For Use With | High Pressure, Course Thread Cylinders |
| Minimum Temperature | -31 deg F |
| Maximum Number of Padlocks | 1 |
| For Thread Type | Coarse |
| Lockout Material | Steel |
| For Neck Ring Diameter | 3-1/8 in |
| Outside Diameter | 3.858 in |
| Maximum Temperature | 203 deg F |
| For Pressure Type | High |
| Overall Width | 54 in |
| Overall Height | 9.962 in |
| Resistance Properties | Chemical Resistant |
| For Valve Wheel Diameter | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
