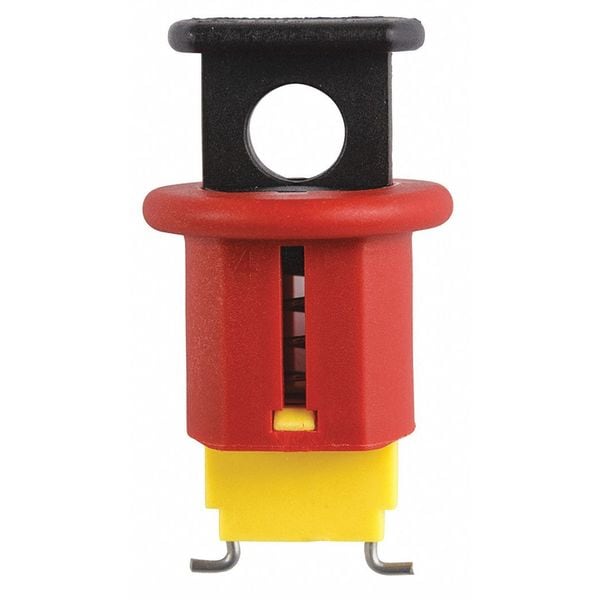

Miniature Circuit Breaker Lockout, Circuit Breaker Switches, 230/400V AC, 1 Poles
| Item | Miniature Circuit Breaker Lockout |
|---|---|
| For Use With | Circuit Breaker Switches |
| Voltage | 230/400V AC |
| Number of Poles | 1 |
| Length | 9/16 in |
| Max. Number of Padlocks | 1 |
| Features | Complete Lockout with Full Size Padlock, Extra-Wide Tip for Added Lockout Security |
| Material | Fiberglass Reinforced Nylon |
| Color | Red |
| Width | 13/16 in |
| Circuit Breaker Poles | 1 |
| Height | 9/19 in |
| Circuit Breaker Voltage | 480/600 |
| Includes | ABB Circuit Breaker |
| Padlock Shackle Max. Dia. | 5/16 in |
| Lockout Type | Standard, Pin-Out |
| OSHA Compliant | No |
| Depth | 0.54 in |
| Standards | ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Housing Material | Fiberglass Reinforced Nylon |
| Dimensions | 1-5/8 in H x 0.81 in W x 0.54 in D |
| Length (Straight Wireway) | 9/16 in |
| Minimum Temperature | -4 deg F |
| Overall Length | 0.56 in |
| Overall Depth | 0.54 in |
| Resistance Properties | Chemical Resistant |
| Circuit Breaker Lockout Type | Pin-Out |
| For Voltage | 230/400V AC |
| Maximum Number of Padlocks | 1 |
| Maximum Temperature | 248 deg F |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| Mount Type | Pin-Out |
| Lockout Color | Red |
| Lockout Material | Fiberglass Reinforced Nylon |
| Overall Height | 1.7 in |
| Overall Width | 0.7 in |
| For Circuit Breaker Type | Mini |
| Package Quantity | 1 |
