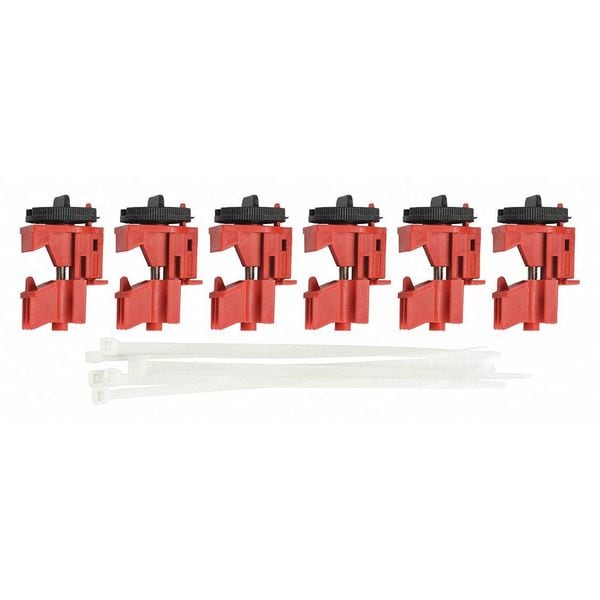

Multi-Pole Breaker Lockout, Circuit Breaker with Standard Nylon Cable Ties, 120/277V AC, 2, 3 Poles
| CAD Available | Yes |
|---|---|
| Item | Multi-Pole Breaker Lockout |
| For Use With | Circuit Breaker with Standard Nylon Cable Ties |
| Voltage | 120/277V AC |
| Number of Poles | 2, 3 |
| Width | 1-5/16 in |
| Includes | (6) TagLock Lockouts |
| Circuit Breaker Poles | 2, 3 |
| Max. Number of Padlocks | 1 |
| Material | Fiberglass Reinforced Nylon |
| Color | Red |
| Padlock Shackle Max. Dia. | 9/32 in |
| Height | 2-1/8 in |
| Features | No Lock Needed, ID Tags can be Pre-Loaded onto Taglock Devices |
| Lockout Type | Multiple-Pole |
| Circuit Breaker Voltage | 120/277 |
| OSHA Compliant | No |
| Length | 2-1/8 in |
| Standards | ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Depth | 2.1 in |
| Housing Material | Fiberglass Reinforced Nylon |
| Dimensions | 1-1/2 in H x 1.3 in W x 2.1 in D |
| Length (Straight Wireway) | 2-1/8 in |
| Labeling | Tag Included |
| Overall Width | 2.45 in |
| Language | English |
| Minimum Temperature | -4 deg F |
| Lockout Color | Red |
| Overall Depth | 2.1 in |
| Maximum Number of Padlocks | 1 |
| Overall Height | 1.3 in |
| For Circuit Breaker Type | Multipole |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| For Circuit Breaker Manufacturer | TagLock |
| Overall Length | 2.13 in |
| Circuit Breaker Lockout Type | Clamp-On |
| Lockout Material | Fiberglass Reinforced Nylon |
| For Voltage | 120/277V AC |
| Resistance Properties | Chemical Resistant |
| Maximum Temperature | 248 deg F |
| Package Quantity | 1 |
