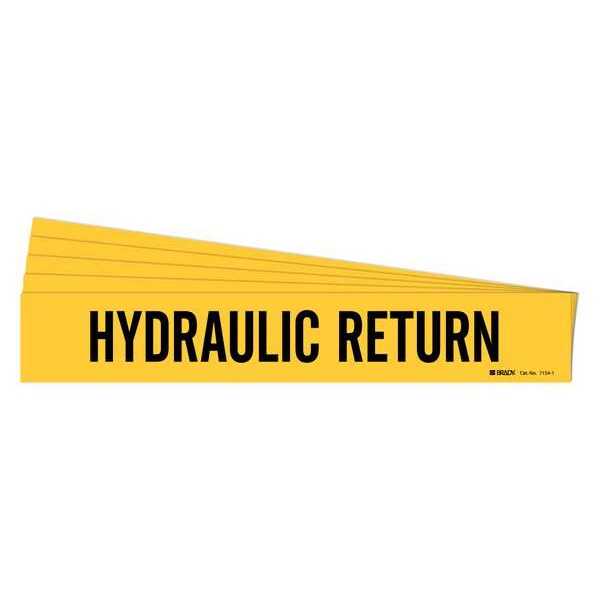

Pipe Marker, Black, Hydraulic Return, PK5, 7154-1-PK
| Item | Pipe Marker |
|---|---|
| Width | 14 in |
| Thickness | 0.004 in |
| Height | 2-1/4 in |
| Standards | ANSI A13.1-2007 |
| Background Color | Yellow |
| Roll Length | 2-1/4 in |
| With or Without Arrows | Without |
| Reflective | No |
| Legend | Hydraulic Return |
| Character Height | 2 in |
| Maximum Pipe O.D. | 7-7/8 in |
| Pipe Marker Mounting Style | Adhesive Pipe Marker |
| Pipe Marker Legend | Hydraulic Return |
| Adhesive Material | Acrylic |
| Pipe Marker Material | Plastic |
| Maximum Service Temperature | 180 deg F |
| Roll Width | 14 in |
| Protective Coating | No Protective Coating |
| NFPA 99, CGA C-9 | No |
| Average Outdoor Durability | 8 to 10 yr |
| Finish | Glossy |
| Pipe Marker Package Type | Card |
| Legend Text Color | Black |
| Adhesive Pipe Marker Format | Die-Cut, on Cards |
| Chemical Resistant | Yes |
| Weather Resistant | Yes |
| Minimum Pipe O.D. | 2-1/2 in |
| Water Resistant | No |
| UV Resistant | No |
| ANSI/ASME A13.1 | Yes |
| Minimum Application Temperature | 0 deg F |
| ISO 14726 | No |
| Fits Pipe O.D. | 2-1/2 to 7-7/8 in |
| Minimum Service Temperature | -40 deg F |
| Abrasion Resistant | Yes |
| Humidity Resistant | No |
| Number of Pipe Markers | 1 |
| Adhesive Style | Permanent |
| Glow In The Dark | No |
| Printed Language | English |
| IIAR Phase | Not Applicable |
| IIAR System Abbreviation | Not Applicable |
| IIAR Pressure Level | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 5 |
