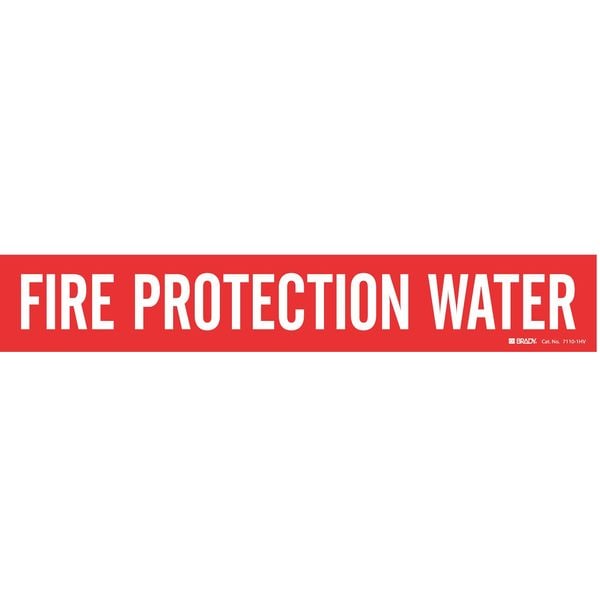

Pipe Marker, Fire Protection Water, Red, 7110-1
| Item | Pipe Marker |
|---|---|
| Width | 14 in |
| Thickness | 0.004 in |
| Height | 2-1/4 in |
| Standards | ANSI A13.1-2007 |
| Background Color | Red |
| Roll Length | 2-1/4 in |
| Reflective | No |
| With or Without Arrows | Without |
| Legend | Water |
| Material | vinyl |
| Legend Color | White |
| Language | English |
| Length | 14 in |
| Pipe Marker Subject Matter | Fire Systems |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Character Height | 2 in |
| Markers per Card | 1 |
| Fits Pipe O.D. | 2-1/2 to 7-7/8 in |
| Operating Temp. Range | -0.4 Degrees F |
| Marker Attachment Style | Self-Adhesive |
| Legend Alpha Range | D to F |
| Self-Adhesive | Yes |
| Average Outdoor Durability | 8 to 10 yr |
| ISO 14726 | No |
| Finish | Glossy |
| ANSI/ASME A13.1 | Yes |
| Minimum Application Temperature | 0 deg F |
| Maximum Service Temperature | 180 deg F |
| Roll Width | 14 in |
| Humidity Resistant | No |
| Abrasion Resistant | Yes |
| Printed Language | English |
| Pipe Marker Package Type | Card |
| Protective Coating | No Protective Coating |
| UV Resistant | No |
| Legend Text Color | White |
| Chemical Resistant | Yes |
| Pipe Marker Mounting Style | Adhesive Pipe Marker |
| Number of Pipe Markers | 1 |
| Water Resistant | Yes |
| Glow In The Dark | No |
| Pipe Marker Material | Vinyl |
| Minimum Service Temperature | -40 deg F |
| Adhesive Style | Permanent |
| Adhesive Pipe Marker Format | Die-Cut, on Cards |
| Weather Resistant | Yes |
| Maximum Pipe O.D. | 7-7/8 in |
| Minimum Pipe O.D. | 2-1/2 in |
| NFPA 99, CGA C-9 | No |
| Adhesive Material | Acrylic |
| Pipe Marker Legend | Water |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
