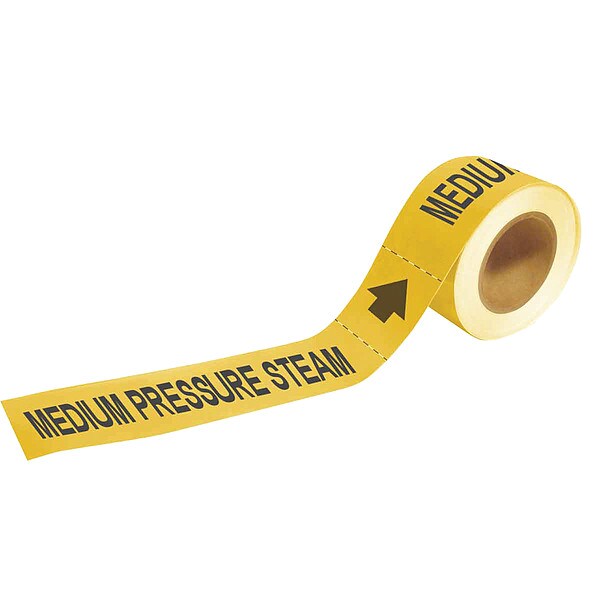

Pipe Marker, Medium Pressure Steam, 2 In.H
| Item | Pipe Marker |
|---|---|
| Width | 12 in |
| Thickness | 0.003 in |
| Height | 2 in |
| Standards | ANSI A13.1-2007 |
| Background Color | Yellow |
| Roll Length | 2 in |
| Reflective | No |
| With or Without Arrows | With |
| Legend | Medium Pressure Steam |
| Material | Plastic |
| Legend Color | Black |
| Indoor/Outdoor Usage | Outdoor, Indoor |
| Language | English |
| Fits Pipe O.D. | 2-1/2 to 6 in |
| Self-Adhesive | Yes |
| Markers per Card | 25 |
| Legend Alpha Range | L to O |
| Pipe Marker Subject Matter | Steam |
| Marker Attachment Style | Self-Adhesive |
| Length | 12 in |
| Operating Temp. Range | 50 Degrees F |
| Average Outdoor Durability | 2 yr |
| Roll Width | 12 in |
| UV Resistant | No |
| ANSI/ASME A13.1 | Yes |
| Adhesive Material | Acrylic |
| Pipe Marker Material | Vinyl |
| Protective Coating | No Protective Coating |
| Weather Resistant | No |
| Pipe Marker Legend | Medium Pressure Steam |
| Adhesive Pipe Marker Format | Die-Cut, Roll Form to Length |
| Minimum Pipe O.D. | 2-1/2 in |
| Pipe Marker Package Type | Roll |
| ISO 14726 | No |
| Minimum Service Temperature | -40 deg F |
| Water Resistant | No |
| Number of Pipe Markers | 25 |
| Minimum Application Temperature | 50 deg F |
| NFPA 99, CGA C-9 | No |
| Printed Language | English |
| Humidity Resistant | No |
| Legend Text Color | Black |
| Glow In The Dark | No |
| Maximum Pipe O.D. | 6 in |
| Chemical Resistant | Yes |
| Maximum Service Temperature | 212 deg F |
| Abrasion Resistant | Yes |
| Adhesive Style | Permanent |
| Pipe Marker Mounting Style | Adhesive Pipe Marker |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
