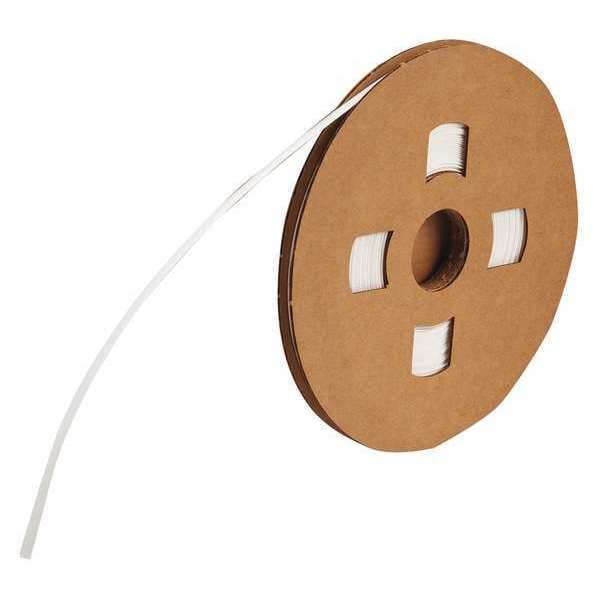

Printable Shrink Tubing, 100 ft. L, Wht
| Item | Printable Shrink Tubing,100 ft. L,Wht |
|---|---|
| Shrink Ratio | 0.084 |
| Material | Heat-shrink Polyolefin |
| Color | White |
| Finish | Matte |
| Size - Width (mm) | 6 mm |
| Height (mm/cm/m) | 6 mm |
| Maximum Wire Diameter (mm/cm/m) | 2.79 mm |
| Dimensions (Metric) | 6.00 mm W x 6 mm H x 30.48 m L |
| Maximum Service Temperature °F | 221 deg F |
| Wire Gauge Range | 20 AWG to 16 AWG |
| Shape | Continuous |
| Label/Media Format | Roll |
| Diameter as Supplied (mm/cm/m) | 3.2 mm |
| Dimensions 2 | 0.235 in H |
| Size - Length (m) | 30.48 m |
| Printable Sides | Single-Side Printable |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i7100; THT 3" Core Printer |
| Dimensions | 0.235 in H |
| Maximum Service Temperature °C | 105 deg C |
| Label Properties | Heat Shrink Sleeves |
| Applications | Wire and Cable Labeling |
| Maximum Wire Diameter (in/ft/yd) | 0.11 in |
| Recovered Wall Thickness (in/ft/yd) | 0.025 in |
| Minimum Service Temperature °C | -55 °C |
| Print Technology | Thermal Transfer |
| Primary Noun, Basic Function | Tubing |
| Sleeve Size (mm/cm/m) | 3.2 mm Dia x 30.48 m L |
| Material Properties | Flame-retardant; Heat-shrinkable, Low-smoke, Zero-halogen |
| Printer and Label Applications | Wire & Cable |
| Minimum Wire Gauge | 20 AWG |
| Roll Length (mm/cm/m) | 30.48 m |
| Printer Compatibility (Print) | BBP72 |
| Printer Compatibility | BBP72 |
| Minimum Service Temperature °F | -67 °F |
| Wire Diameter Range | 0.062 to 0.11 in |
| Maximum Wire Gauge | 16 AWG |
| Diameter as Supplied (in/ft/yd) | 1/8 in |
| Resistance Properties | Chemical-Resistant; Self-Extinguishing; Smear-Resistant |
| Recovered Wall Thickness (mm/cm/m) | 0.64 mm |
| Sleeve Size (in/ft/yd) | 1/8 in Dia x 100 ft L |
| Recovered Diameter (mm/cm/m) | 1.6 mm |
| Recommended Ribbon | R6406 |
| Suggested Ribbon Series | R6600, R6000 Halogen Free |
| Height (in/ft/yd) | 0.235 in |
| Recovered Diameter (in/ft/yd) | 0.062 in |
| Continuous & Die-Cut Materials Supported | Continuous Tapes Only |
| Minimum Wire Diameter (mm/cm/m) | 1.57 mm |
| Minimum Wire Diameter (in/ft/yd) | 0.062 in |
| Roll Length (in/ft/yd) | 100 ft |
| Package Quantity | 1 |
