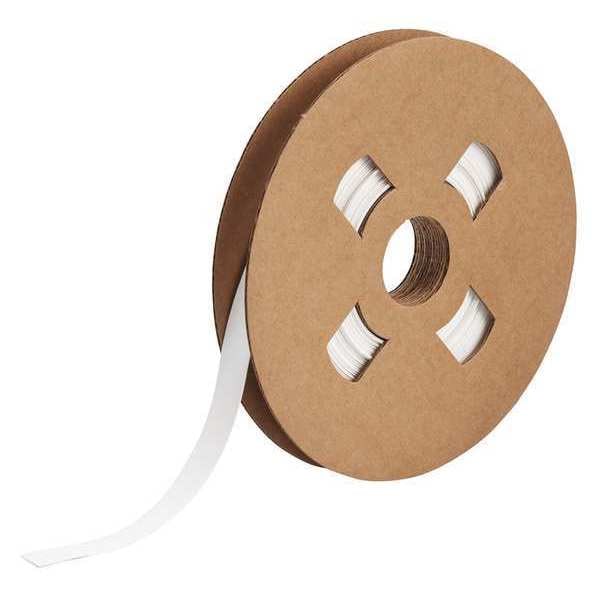

Printable Shrink Tubing, 75 ft. L, White
| Item | Printable Shrink Tubing,75 ft. L,White |
|---|---|
| Shrink Ratio | 0.084 |
| Material | High Temperature Heat-shrink Polyvinylidene Fluoride Sleeve |
| Color | White |
| Finish | Matte |
| Maximum Service Temperature °F | 437 deg F |
| Material Properties | Flame-retardant; Heat-shrinkable |
| Wire Gauge Range | 8 AWG to 4 AWG |
| Dimensions | 0.645 in H |
| Sleeve Size (in/ft/yd) | 3/8 in Dia x 75 ft L |
| Size - Width (mm) | 16.38 mm |
| Label Properties | Heat Shrink Sleeves |
| Minimum Wire Diameter (mm/cm/m) | 4.78 mm |
| Recovered Wall Thickness (mm/cm/m) | 0.38 mm |
| Roll Length (in/ft/yd) | 75 ft |
| Recovered Wall Thickness (in/ft/yd) | 0.015 in |
| Maximum Wire Diameter (in/ft/yd) | 0.32 in |
| Diameter as Supplied (in/ft/yd) | 3/8 in |
| Dimensions (Metric) | 16.38 mm W x 16.4 mm H x 22.86 m L |
| Minimum Wire Gauge | 8 AWG |
| Label/Media Format | Roll |
| Printer Compatibility | BBP72 |
| Minimum Service Temperature °C | -55 °C |
| Printer Compatibility (Print) | BBP72 |
| Suggested Ribbon Series | R6600, R6000 Halogen Free |
| Wire Diameter Range | 0.188 to 0.32 in |
| Applications | Wire and Cable Labeling |
| Maximum Service Temperature °C | 225 deg C |
| Diameter as Supplied (mm/cm/m) | 9.5 mm |
| Shape | Continuous |
| Dimensions 2 | 0.645 in H |
| Indoor or Outdoor Use | Outdoor Use |
| Printable Sides | Single-Side Printable |
| Primary Noun, Basic Function | Tubing |
| Height (mm/cm/m) | 16.4 mm |
| Height (in/ft/yd) | 0.645 in |
| Sleeve Size (mm/cm/m) | 9.5 mm Dia x 22.86 m L |
| Minimum Wire Diameter (in/ft/yd) | 0.188 in |
| Resistance Properties | Chemical-Resistant; Gasoline-Resistant; Smear-Resistant |
| Recommended Ribbon | R6006 |
| Print Technology | Thermal Transfer |
| Maximum Wire Gauge | 4 AWG |
| Printer and Label Applications | Wire & Cable |
| Maximum Wire Diameter (mm/cm/m) | 8.13 mm |
| Recovered Diameter (in/ft/yd) | 0.188 in |
| Roll Length (mm/cm/m) | 22.86 m |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer |
| Size - Length (m) | 22.86 m |
| Recovered Diameter (mm/cm/m) | 4.8 mm |
| Minimum Service Temperature °F | -67 °F |
| Package Quantity | 1 |
