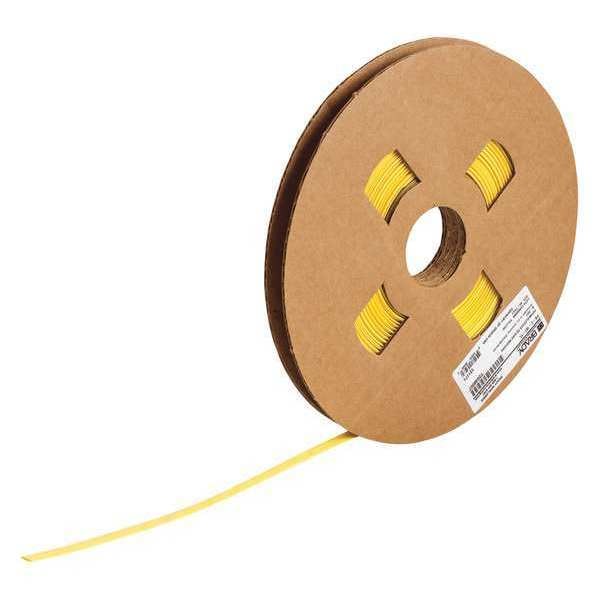

Printable Shrink Tubing, 90 ft. L, Yellow
| Item | Printable Shrink Tubing,90 ft. L,Yellow |
|---|---|
| Shrink Ratio | 0.1257 |
| Material | Heat-shrink Polyolefin |
| Color | Yellow |
| Finish | Matte |
| Maximum Service Temperature °C | 135 deg C |
| Label Properties | Heat Shrink Sleeves |
| Roll Length (mm/cm/m) | 27.43 m |
| Maximum Service Temperature °F | 275 deg F |
| Sleeve Size (in/ft/yd) | 0.187 in Dia x 90 ft L |
| Roll Length (in/ft/yd) | 90 ft |
| Minimum Wire Gauge | 20 AWG |
| Material Properties | Flame-retardant; Heat-shrinkable |
| Printable Sides | Single-Side Printable |
| Suggested Ribbon Series | R6600, R4300, R5000 |
| Print Technology | Thermal Transfer |
| Minimum Service Temperature °F | -67 °F |
| Printer Compatibility (Print) | BBP72, i7100, i5100, BBP12 |
| Wire Diameter Range | 0.062 to 0.15 in |
| Minimum Wire Diameter (in/ft/yd) | 0.062 in |
| Sleeve Size (mm/cm/m) | 4.8 mm Dia x 27.43 m L |
| Wire Gauge Range | 20 AWG to 10 AWG |
| Maximum Wire Diameter (mm/cm/m) | 3.81 mm |
| For Use with Printer | BBP®72 Label Printer; BradyPrinter i5100; BradyPrinter i7100; THT 3" Core Printer |
| Height (in/ft/yd) | 0.335 in |
| Dimensions (Metric) | 8.51 mm W x 8.5 mm H x 27.43 m L |
| Height (mm/cm/m) | 8.5 mm |
| Printer Compatibility | BBP72, PR200Plus, PR300Plus, PR600Plus, i7100, IP300, IP600, i5100, BBP12 |
| Applications | Wire and Cable Labeling |
| Minimum Service Temperature °C | -55 °C |
| Diameter as Supplied (in/ft/yd) | 0.187 in |
| Dimensions | 0.335 in H |
| Resistance Properties | Chemical-Resistant; Smear-Resistant |
| Recovered Diameter (in/ft/yd) | 0.062 in |
| Dimensions 2 | 0.335 in H |
| Shape | Continuous |
| Recovered Diameter (mm/cm/m) | 1.6 mm |
| Minimum Wire Diameter (mm/cm/m) | 1.57 mm |
| Size - Width (mm) | 8.51 mm |
| Printer and Label Applications | Wire & Cable |
| Diameter as Supplied (mm/cm/m) | 4.8 mm |
| Size - Length (m) | 27.43 m |
| Recovered Wall Thickness (mm/cm/m) | 0.51 mm |
| Primary Noun, Basic Function | Tubing |
| Label/Media Format | Roll |
| Recommended Ribbon | IP-R6606; R6606 |
| Maximum Wire Diameter (in/ft/yd) | 0.15 in |
| Maximum Wire Gauge | 10 AWG |
| Recovered Wall Thickness (in/ft/yd) | 0.02 in |
| Package Quantity | 1 |
