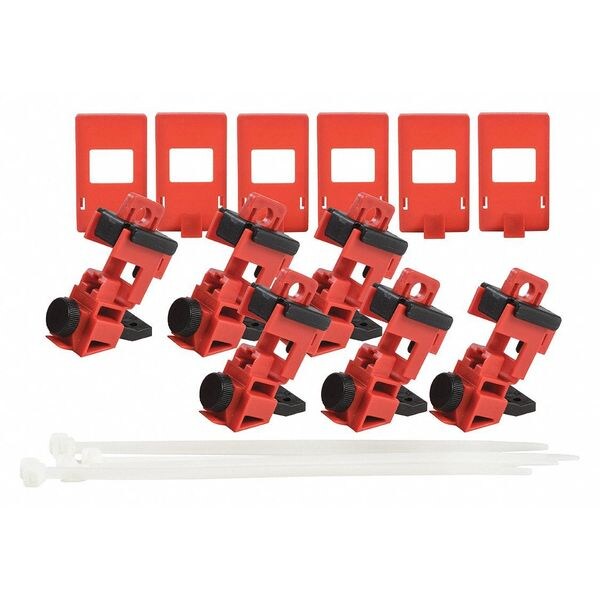

Single Pole Breaker Lockout, Circuit Breaker with Standard Nylon Cable Ties, 1 Poles
| Item | Single Pole Breaker Lockout |
|---|---|
| For Use With | Circuit Breaker with Standard Nylon Cable Ties |
| Voltage | 120/277V AC |
| Number of Poles | 1 |
| Circuit Breaker Poles | 1 |
| OSHA Compliant | No |
| Lockout Type | Clamp-On |
| Height | 2-5/8 in |
| Circuit Breaker Voltage | 120/277 |
| Length | 2-5/8 in |
| Includes | (6) TagLock Lockouts |
| Max. Number of Padlocks | 1 |
| Padlock Shackle Max. Dia. | 9/32 in |
| Width | 1-1/16 in |
| Features | No Lock Needed, ID Tags can be Pre-Loaded onto Taglock Devices |
| Material | Nylon, Polypropylene |
| Color | Red |
| Housing Material | Fiberglass Reinforced Nylon, Polypropylene |
| Standards | ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1) |
| Depth | 2.626 in |
| Dimensions | 1.272 in H x 1.064 in W x 2.626 in D |
| Length (Straight Wireway) | 2-5/8 in |
| Maximum Temperature | 239 deg F |
| Circuit Breaker Lockout Type | Clamp-On |
| For Maximum Padlock Shackle Diameter | 9/32 in |
| Minimum Temperature | -40 deg F |
| Overall Height | 1.38 in |
| Lockout Color | Red |
| For Circuit Breaker Manufacturer | TagLock |
| Overall Depth | 1.27 in |
| For Maximum Switch Width | 2.63 in |
| For Voltage | 120/277V AC |
| Overall Length | 2.63 in |
| Language | English |
| Maximum Number of Padlocks | 1 |
| Labeling | Tag Included |
| Resistance Properties | Chemical Resistant |
| Overall Width | 1.06 in |
| Mount Type | Clamp-On |
| For Circuit Breaker Type | Single Pole |
| Lockout Material | Fiberglass Reinforced Nylon, Polypropylene |
| Package Quantity | 6 |
