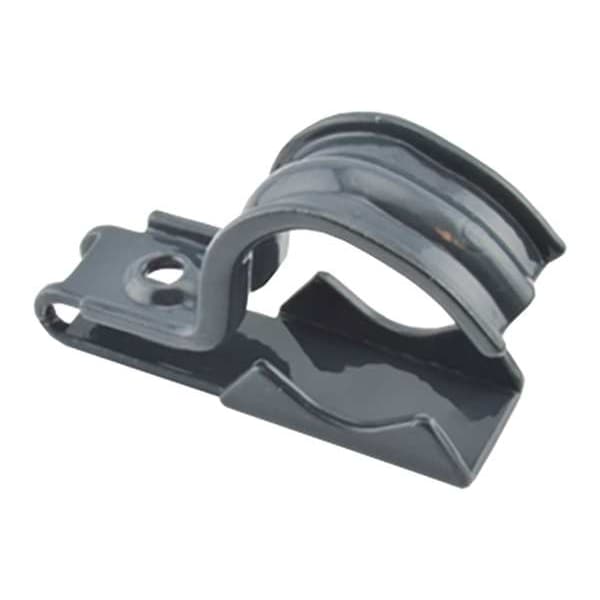

Clamp, Conduit; EMT; Pipe Use, Steel, Corrosion Resistant Coated
| Item | Clamp |
|---|---|
| Material | Steel |
| Finish | Corrosion Resistant Coated |
| For Use With | Conduit; EMT; Pipe |
| Wire Range | .710 to 1.10 AC/MC/JMC |
| Compatible Pipe Size | 1/2 in, 3/4 in |
| Height | 3-19/32 in |
| Width | 1-31/32 in |
| Standards | ETL Listed, NEMA, REACH Compliance, RoHS Compliant, UL |
| Overall Length | 2-13/32 in |
| Mounting Hole Diameter | 0.255 in |
| Overall Height | 1-15/32 in |
| Load Capacity | 50 lb |
| Compatible Conduit Trade Size | 1/2 in, 3/4 in |
| Length | 2-13/32 in |
| Overall Width | 1-31/32 in |
| Number of Pieces | 50 |
| Thread Size | 1/4-20 |
| Compatible Conduit Type | EMT, FMC, IMC, Metallic Liquid Tight, Non-Metallic Liquid Tight, Schedule 40, Schedule 80 PVC |
| Resistance Properties | UV Resistant |
| Indoor/Outdoor Usage | Outdoor Only |
| For Minimum Cable OD | 0.71 in |
| Compatible Nominal Conduit/Pipe Size | 1/2 in, 3/4 in |
| Flange Thickness | 1/2 in to 3/4 in |
| For Maximum Cable OD | 1.1 in |
| Color | Black |
| Sub-Category | Conduit Clamps, Conduit Straps |
| Series | UCSC |
| Primary Materials | Zinc Plated Steel |
| Nema Standard | FB-1 |
| UL Standard | UL-2239 |
| Dimensions B | 1.47 |
| Dimensions A | 2.42 |
| Dimensions C | 0.97 |
| Dimensions D | 0.255 |
| Package Quantity | 1 |
