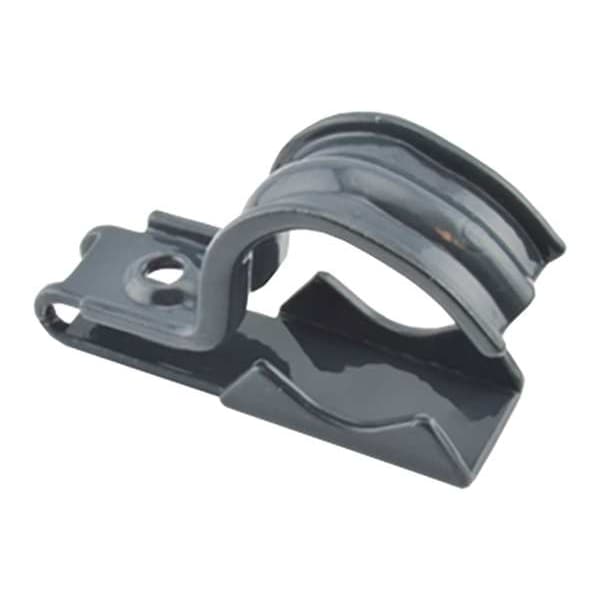

Clamp, Conduit; EMT; Pipe Use, Steel, Corrosion Resistant Coated
| Item | Clamp |
|---|---|
| Material | Steel |
| Finish | Corrosion Resistant Coated |
| For Use With | Conduit; EMT; Pipe |
| Series | UCSC |
| Height | 3-19/32 in |
| Thread Size | 1/4-20 |
| For Maximum Cable OD | 1.66 in |
| Overall Width | 1-5/16 in |
| Number of Pieces | 25 |
| Wire Range | 1.158 to 1.660 AC/MC/JMC |
| Overall Length | 2-13/16 in |
| Mounting Hole Diameter | 0.28 in |
| Compatible Nominal Conduit/Pipe Size | 1 in, 1-1/4 in |
| Indoor/Outdoor Usage | Outdoor Only |
| Length | 2-13/16 in |
| Load Capacity | 75 lb |
| Flange Thickness | 1 in to 1 1/4 in |
| Width | 1-5/16 in |
| Sub-Category | Conduit Clamps, Conduit Straps |
| Compatible Pipe Size | 1 in, 1-1/4 in |
| Compatible Conduit Trade Size | 1 in, 1-1/4 in |
| Standards | ETL Listed, NEMA, REACH Compliance, RoHS Compliant, UL |
| Color | Black |
| Compatible Conduit Type | EMT, FMC, IMC, Metallic Liquid Tight, Non-Metallic Liquid Tight, Schedule 40, Schedule 80 PVC |
| For Minimum Cable OD | 1.158 in |
| Resistance Properties | UV Resistant |
| Overall Height | 1-15/32 in |
| Dimensions C | 1.03 |
| Dimensions A | 2.81 |
| Dimensions B | 1.91 |
| Dimensions D | 0.28 |
| UL Standard | UL-514B |
| Primary Materials | Zinc Plated Steel |
| Nema Standard | FB-1 |
| Package Quantity | 1 |
