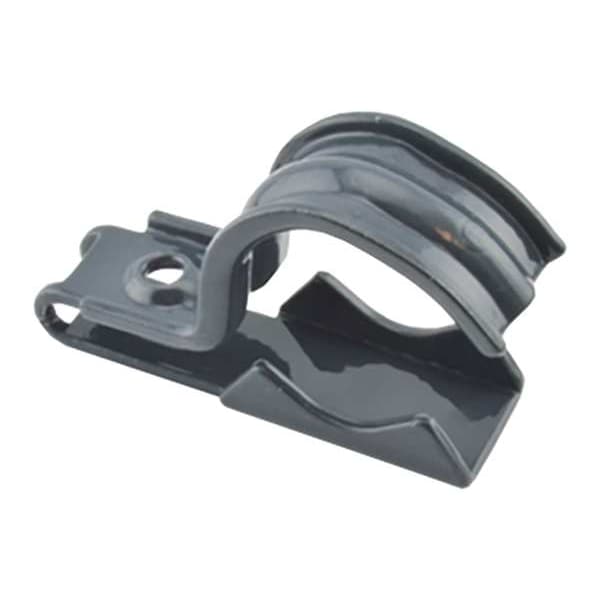

Clamp, Conduit; EMT; Pipe Use, Steel, Corrosion Resistant Coated
| Item | Clamp |
|---|---|
| Material | Steel |
| Finish | Corrosion Resistant Coated |
| For Use With | Conduit; EMT; Pipe |
| Thread Size | 5/16-18 |
| Compatible Conduit Trade Size | 1-1/2 in, 2 in |
| Flange Thickness | 1 1/2 in to 2 in |
| Compatible Nominal Conduit/Pipe Size | 1-1/2 in, 2 in |
| Height | 7-7/32 in |
| Series | UCSC |
| Overall Height | 2-31/32 in |
| Compatible Conduit Type | EMT, FMC, IMC, Metallic Liquid Tight, Non-Metallic Liquid Tight, Schedule 40, Schedule 80 PVC |
| For Maximum Cable OD | 2.45 in |
| Length | 4-3/16 in |
| Load Capacity | 100 lb |
| Color | Black |
| Sub-Category | Conduit Clamps, Conduit Straps |
| Width | 1-3/16 in |
| Indoor/Outdoor Usage | Outdoor Only |
| Number of Pieces | 25 |
| Overall Length | 4-3/16 in |
| Wire Range | 1.735 to 2.450 AC/MC/JMC |
| Standards | ETL Listed, NEMA, REACH Compliance, RoHS Compliant, UL |
| Overall Width | 1-3/16 in |
| Resistance Properties | UV Resistant |
| Mounting Hole Diameter | 0.34 in |
| For Minimum Cable OD | 1.735 in |
| Compatible Pipe Size | 1-1/2 in, 2 in |
| UL Standard | UL-514B |
| Dimensions D | 0.34 |
| Dimensions B | 2.96 |
| Primary Materials | Zinc Plated Steel |
| Dimensions C | 1.2 |
| Dimensions A | 4.2 |
| Nema Standard | FB-1 |
| Package Quantity | 1 |
