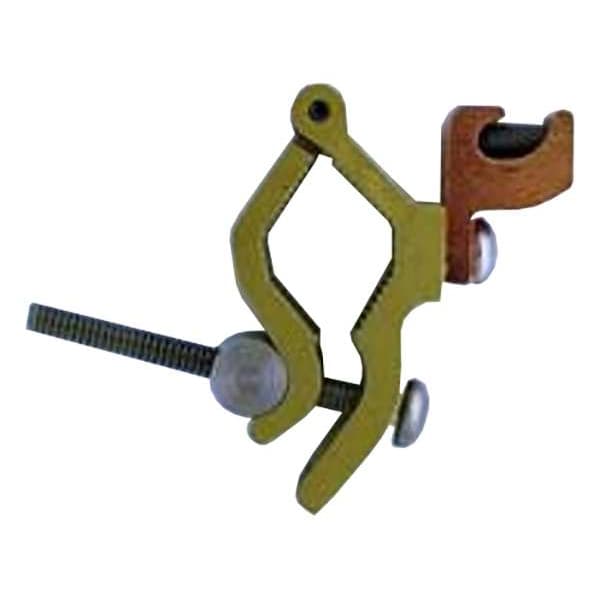

Single Bolt Grounding Clamp, SS
| Item | Single Bolt Grounding Clamp |
|---|---|
| Type - Grounding Connector | Lug |
| Material | Bronze |
| Grounding Wires Connected To | 1/2 in to 1 in Conduit, Steel and Copper Water Pipes |
| Standards | A-A-50552, C22.2 NO. 41-07, NEMA Standard: FB-1, UL File Number: E-20412, UL-467, UNSPSC: 39121613 |
| For Maximum Ground Conductor Wire Size | 4 AWG |
| For Use With | EMT and Rigid Conduit Raceways |
| For Minimum Ground Conductor Wire Size | 14 AWG |
| Description/Special Features | Single Bolt Grounding Clamp |
| Grounding Wire Size | 4 to 14 AWG |
| Dimensions A | 0.65 |
| Trade Size | 1/2" - 1" |
| UL Standard | UL-467 |
| Dimensions C | 2.5 |
| Primary Materials | Constructed of Bronze and Stainless Steel Hardware and Attached Direct Burial Rated Copper Alloy Lug |
| Dimensions B | 2.75 |
| NEMA Standard | FB-1 |
| Package Quantity | 1 |
