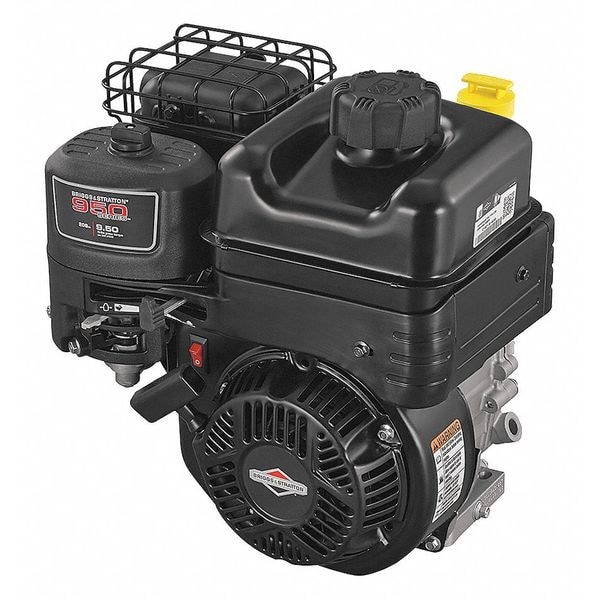

Engine, Gas, 5.9 HP, gr. Torque 9.5 ft.-lb.
| Type | 4 cycle |
|---|---|
| HP | 5.9 hp |
| Gross Torque | 9.5 ft-lb |
| Shaft Orientation | Horizontal |
| Shaft Dia. (In.) | 3/4 |
| Shaft Length (In.) | 2.42 |
| Fuel Tank Capacity (Qt.) | 3.2 |
| Shaft Configuration | Key |
| Shaft Key (In.) | 47/250 in |
| Air Cleaner Type | Dual Clean |
| Series | 950 Series |
| PTO Shaft Key (In.) | 3/16 |
| Overall Depth Facing PTO (In.) | 13.56 |
| Recommended Use | Chore Tiller Pump Small Utility Engine |
| Muffler | Yes |
| PTO Shaft Dia. (In.) | 3/4 |
| Shaft Height (In.) | 4.17 |
| Gear Box | No |
| PTO Shaft Height (In.) | 4.17 |
| Overall Height (In.) | 14.45 |
| Cylinders | 1 |
| 4 Cycle Engine | yes |
| Item | Gasoline Engine |
| Design | Overhead Valve |
| Maintenance Frequency | Change Oil at 5 Hour, Then Once Every 50 Hour or Seasonally |
| Overall Depth (In.) | 11.14 |
| Starter Type | Rewind |
| Bearings | Dual Ball |
| Agency Compliance | SAE J1940 |
| Overall H Facing PTO (In.) | 14.45 |
| Overall W Facing PTO (In.) | 16.1 |
| Features | Dura-Bore Cast Iron Cylinder Sleeve |
| PTO Shaft Length (In.) | 2.42 |
| Overall Width (In.) | 16.1 |
| Engine RPM | 3,300 RPM |
| Low Oil Shut Down | Yes |
| Application | Chore Tiller Pump Small Utility Engine |
| Start | Recoil |
| Ignition Type | Magnetron Electronic |
| RPM | 3,300 |
| Air Filter | Yes |
| Function | General Purpose |
| Rotation | CCW |
| Includes | Dura-Bore Cast Iron Cylinder Sleeve |
| Overall Width | 16-1/8 in |
| Overall Height | 14-7/16 in |
| Standards | SAE J1940 |
| Overall Depth Facing PTO | 13-9/16 in |
| Engine Cycle | 4-Cycle |
| Engine Displacement | 208 cc |
| Shaft Key | 3/16 in |
| Horsepower | 6.5 |
| Engine Series | Professional Series |
| Shaft Diameter | 3/4 in |
| Shaft Length | 2-7/16 in |
| Overall W Facing PTO | 16-1/8 in |
| PTO Shaft Diameter | 3/4 in |
| Overall H Facing PTO | 14-7/16 in |
| Start Type | Recoil |
| Number of Cylinders | 1 |
| Overall Depth | 11-1/8 in |
| PTO Shaft Key | 3/16 in |
| CARB Compliant | CARB Compliant |
| Engine Brand | Briggs and Stratton |
| PTO Shaft Length | 2-7/16 in |
| Fuel Tank Capacity | 3.2 qt |
| PTO Shaft Height | 4 3/16 in |
| Shaft Height | 4-3/16 in |
| Maximum Speed | 3,300 rpm |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
