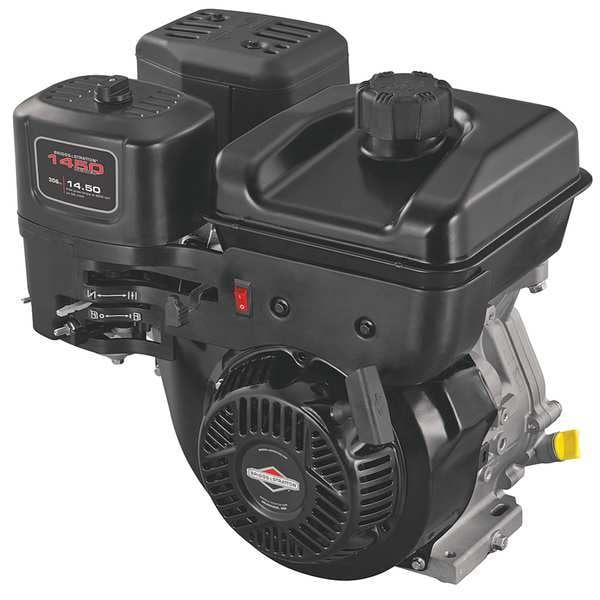

Gas Engine, 3750 rpm, 2.51 in. Shaft L
| Type | 4 cycle |
|---|---|
| Gross Torque | 14.5 ft-lb |
| Shaft Orientation | Horizontal |
| Shaft Dia. (In.) | 3/4 |
| Shaft Length (In.) | 2-1/2 |
| Fuel Tank Capacity (Qt.) | 3.2 |
| Shaft Key (In.) | 3/16 |
| Overall Depth Facing PTO (In.) | 11 |
| Ignition Type | Magnetron Electronic |
| Start | Recoil |
| Application | Blowers, Compressors, Log Splitters, Other Utility Engine Applications, Pressure Washers, Tillers |
| Low Oil Shut Down | Yes |
| 4 Cycle Engine | yes |
| Series | XR Professional 1450 |
| Agency Compliance | ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines |
| Recommended Use | Blowers, Compressors, Log Splitters, Other Utility Engine Applications, Pressure Washers, Tillers |
| Features | Cast Iron Cylinder Sleeve for Extended Life |
| Bearings | Ball, PTO |
| Shaft Height (In.) | 5-1/4 |
| Overall H Facing PTO (In.) | 16-1/2 |
| Design | Overhead Valve |
| Overall Depth (In.) | 11 |
| RPM | 3,750 |
| Function | General Purpose |
| PTO Shaft Height (In.) | 5-1/4 |
| Cylinders | Cast Iron |
| PTO Shaft Length (In.) | 2.51 |
| Gear Box | No |
| PTO Shaft Key (In.) | 0.187 |
| Includes | Low Oil Sensor, Metal Tank |
| Overall Width (In.) | 17 |
| Overall Height (In.) | 16-1/2 |
| Engine RPM | 3,750 RPM |
| Muffler | Yes |
| Starter Type | Recoil |
| Maintenance Frequency | Change Oil After 5 Hour Break In Period, and Then After 100 Hour or Annually, Whichever Comes First, Change/Clean Filter and Precleaner Every 25 Hour or Annually, Inspect Muffler and Spark Arrester Every 50 Hour, Replace Air Filter, Spark Plug and Oil Annually, Use Briggs Fuel Treatment to Avoid Carburetion Issues Caused By Stale Fuel |
| Item | Gasoline Engine |
| Overall W Facing PTO (In.) | 17 |
| Rotation | CCW |
| Air Filter | Pleated Paper |
| Air Cleaner Type | Dual Clean |
| Shaft Configuration | Keyed 3/16", Tapped 3/8"-24 |
| PTO Shaft Dia. (In.) | 3/4 |
| Overall Height | 16-1/2 in |
| Standards | ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines |
| Overall Width | 17 in |
| PTO Shaft Diameter | 3/4 in |
| Shaft Key | 3/16 in |
| Overall Depth | 11 in |
| Shaft Length | 2-1/2 in |
| PTO Shaft Length | 2-1/2 in |
| Engine Displacement | 305 cc |
| PTO Shaft Height | 5 1/4 in |
| Engine Cycle | 4-Cycle |
| Shaft Height | 5-1/4 in |
| Start Type | Recoil |
| Engine Brand | Briggs and Stratton |
| Overall H Facing PTO | 16-1/2 in |
| CARB Compliant | CARB Compliant |
| Shaft Diameter | 3/4 in |
| Number of Cylinders | 1 |
| Overall Depth Facing PTO | 11 in |
| Overall W Facing PTO | 17 in |
| Horsepower | 10 |
| Engine Series | Professional Series |
| Maximum Speed | 3,750 rpm |
| Fuel Tank Capacity | 3.2 qt |
| PTO Shaft Key | 3/16 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
