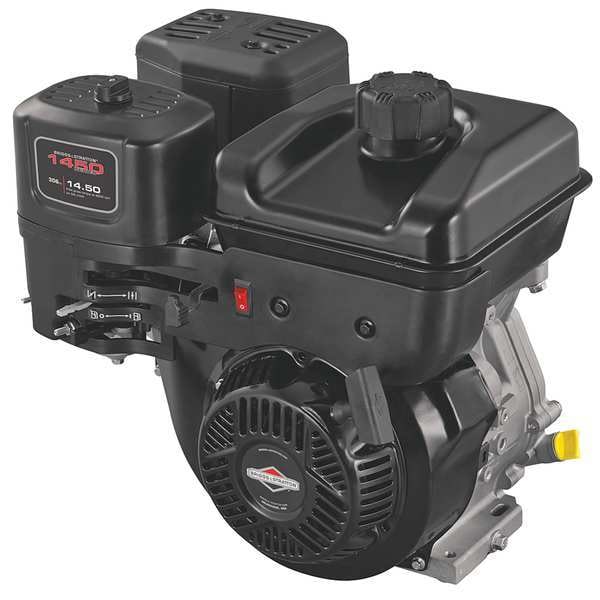

Gas Engine, 3750 rpm, 2.77 in. Shaft L
| Item | Gasoline Engine |
|---|---|
| Includes | Low Oil Sensor, Metal Tank |
| Overall Width (In.) | 17 |
| Function | General Purpose |
| Shaft Key (In.) | 1/4 |
| Agency Compliance | ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines |
| PTO Shaft Key (In.) | 1/4 |
| Bearings | Ball, PTO |
| PTO Shaft Dia. (In.) | 1 |
| 4 Cycle Engine | yes |
| Shaft Height (In.) | 5-1/4 |
| Cylinders | Cast Iron |
| Starter Type | Recoil |
| Series | XR Professional 1450 |
| Overall Depth Facing PTO (In.) | 11 |
| Air Cleaner Type | Dual Clean |
| Shaft Dia. (In.) | 1 |
| Rotation | CCW |
| Application | Blowers, Compressors, Log Splitters, Other Utility Engine Applications, Pressure Washers, Tillers |
| PTO Shaft Length (In.) | 2.77 |
| Start | Recoil |
| RPM | 3,750 |
| Fuel Tank Capacity (Qt.) | 3.2 |
| Overall Depth (In.) | 11 |
| PTO Shaft Height (In.) | 5-1/4 |
| Ignition Type | Magnetron Electronic |
| Engine RPM | 3,750 rpm |
| Shaft Length (In.) | 2-49/64 |
| Overall Height (In.) | 16-1/2 |
| Low Oil Shut Down | Yes |
| Overall W Facing PTO (In.) | 17 |
| Type | 4 cycle |
| Shaft Configuration | Keyed 1/4", Tapped 3/8"-24 |
| Design | Overhead Valve |
| Maintenance Frequency | Change Oil After 5 Hour Break In Period, and Then After 100 Hour or Annually, Whichever Comes First, Change/Clean Filter and Precleaner Every 25 Hour or Annually, Inspect Muffler and Spark Arrester Every 50 Hour, Replace Air Filter, Spark Plug and Oil Annually, Use Briggs Fuel Treatment to Avoid Carburetion Issues Caused By Stale Fuel |
| Air Filter | Pleated Paper with Foam Pre Cleaner |
| Overall H Facing PTO (In.) | 16-1/2 |
| Shaft Orientation | Horizontal |
| Gross Torque | 14.5 ft-lb |
| Gear Box | No |
| Muffler | Yes |
| Features | Cast Iron Cylinder Sleeve for Extended Life |
| Recommended Use | Blowers, Compressors, Log Splitters, Other Utility Engine Applications, Pressure Washers, Tillers |
| Overall Height | 16-1/2 in |
| Standards | ASE J1940, CARB, EPA, Meets all Consumer Protection Agency Labeling Guidelines |
| Overall Width | 17 in |
| Shaft Key | 1/4 in |
| PTO Shaft Length | 2-3/4 in |
| CARB Compliant | CARB Compliant |
| PTO Shaft Height | 5-1/4 in |
| Overall Depth Facing PTO | 11 in |
| Engine Series | XR Professional Series |
| Overall W Facing PTO | 17 in |
| PTO Shaft Diameter | 1 in |
| Horsepower | 10 |
| Maximum Speed | 3,750 rpm |
| Overall H Facing PTO | 16-1/2 in |
| Number of Cylinders | 1 |
| Fuel Tank Capacity | 3.2 qt |
| Engine Brand | Briggs and Stratton |
| Shaft Length | 2-3/4 in |
| PTO Shaft Key | 1/4 in |
| Shaft Diameter | 1 in |
| Overall Depth | 11 in |
| Engine Cycle | 4-Cycle |
| Shaft Height | 5-1/4 in |
| Engine Displacement | 305 cc |
| Start Type | Recoil |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
